DSP per diffusori con 2 ingressi e 6 uscite. Software di interfaccia utenteWindows per la configurazione. Prestazioni audio eccezionali e funzionalità adeguate a tutte le applicazioni di dimensioni medio/piccole. Monitoraggio in tempo reale Perfetto per la serie CUB

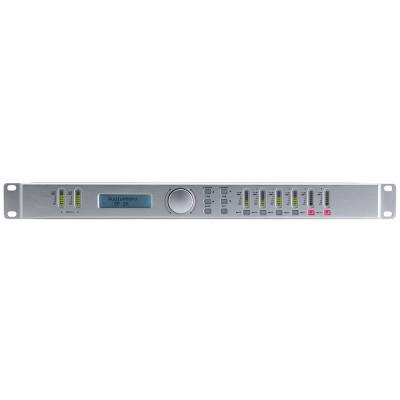

2-in 6-out loudspeaker DSP.Windows user interface software for configuration Real-time monitoring Perfect for CUB series
Processeur audio complet avec 2 entrées et 6 sorties symétriques. Logiciel d'interface utilisateur Windows pour la configuration et contrôle en temps réel. Des performances audio exceptionnelles et une fonctionnalité adaptée à toutes les applications de petite et moyenne taille. Parfait pour la série CUB.
Dati tecnici
- Inputs: 2 balanced inputs
- Outputs: 6 balanced outputs
- Input impedance: > 10kΩ.
- Output gain: From +12dB to -50dB, 0.25dB increment
- Input gain: From +12dB to -50dB, 0.25dB increment
- Frequency Response (-0.3dB) : 20Hz - 20kHz
- THD+N: < 0.05%
- Max delay: 5ms
- Dynamic range: > 98dB
- Minimum load impedance : 600Ω
- Maximum output level : +9dBu (600Ω load)
- Sampling rate: 96kHz, 24 bit depth
- Crossover / EQ operational frequency band: 20Hz-20kHz
- Crossover filtering : Bessel, Butterworth (6, 12, 24 and 48dB/Octave), Linkwitz-Riley (12 and 24dB/Octave)
- 10-band EQ type: Bell, Notch, All Pass, Band Pass, Low/High Pass, Low/High Shelf
- Equalizer gain: Adjustable from -12dB to +12dB
- Equalizer Q: Adjustable from 0.2 to 25
- Phase inversion: Yes
- Limiter release time: Adjustable from 10 to 100
- Limiter threshold: Adjustable from -48dB to 9dB
- LCD Display: 2×16 character
- Password protection: Yes
- Device presets: 50
- Language options: English, Germany, Spanish, French, Dutch
- Signal inputs: XLR Female socket
- Signal outputs: XLR Male socket
- Computer link: USB
- Mains power: 3 cores ICE socket
- Product Dimensions (mm): 483 x 127 x 45 (1U)
- Weight: 3kg
