Amplificatore, mixer e sintonizzatore in un unico apparecchio. Sistema all-in-one efficiente e montabile a rack 19". Potenza 130W. Mixer a 5 canali: USB/MP3 e sintonizzatore integrati, 2 ingressi di linea Aux, 3 ingressi per microfono. Attivazione del segnale acustico tramite un pulsante. Uscita 70/100V o a bassa impedenza 4/16 ohm.
Mixer/Amplifier/Tuner player. All-in-one, efficient and mountable 19" rack system. 130W. 5-inputs mixer: USB/MP3 player and Tuner, 2 Aux line inputs and 3 microphone inputs. Activate the chimeVia a pushbutton. 2-band equalizer. 70/100V or low impedance amplified outputs
Amplificateur, mixer et lecteur multimédia en un. Système tout-en-un efficace, montable en rack 19". Puissance 130 W. Mixer à 5 entrées : lecteur MP3 avec port USB et tuner intégrés, 2 entrées ligne, 3 entrées microphone. Bouton pour l’activation du carillon. Sortie 70/100 V ou basse impédance 16 à 4 ohms.
Dati tecnici

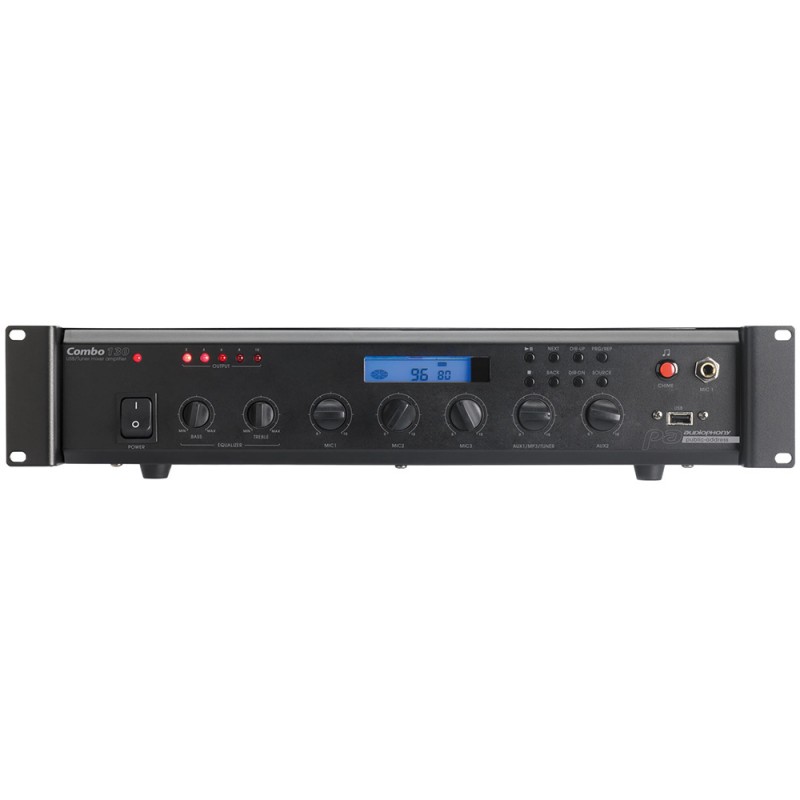

Front panel controllers :
- 3-channel micVolume control
- Aux1/MP3/TunerVolume control
- Aux2Volume control
- Bass/treble tone control
- MP3 reader and Tuner control
- Chime activation
- LEDView meter
Rear panel controllers :
- Mute sensitivity control for priority signal

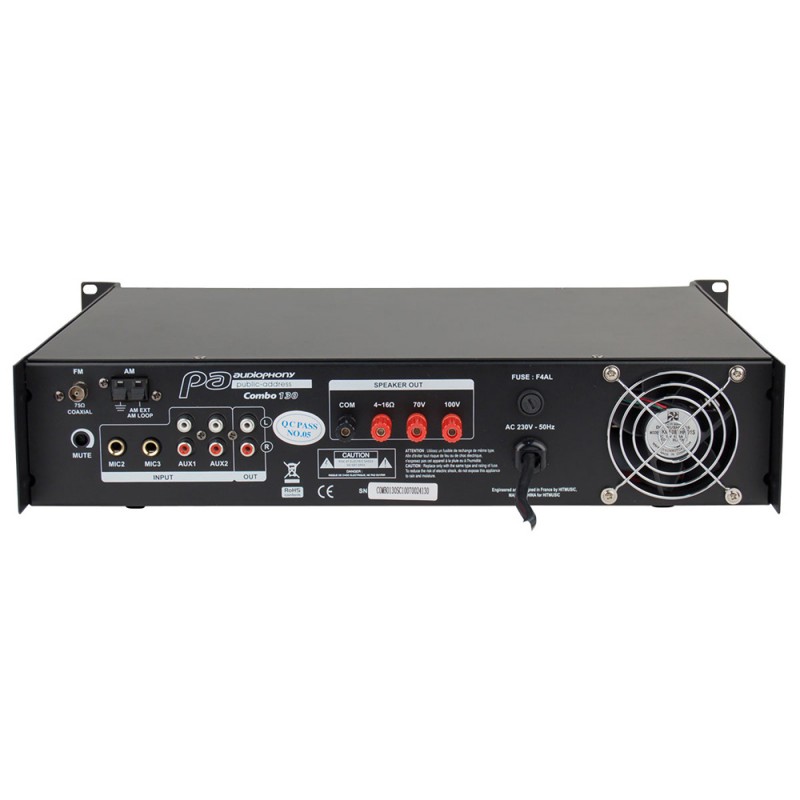

Rear panel connectors :
- Mic 1 and 2 jack inputs
- RCA input for AUX1 and AUX2 channels
- RCA output to send a mixed signal to another amp
- AM/FM antenna connectors
- High-impedance loudspeaker outputs: 70 and 100 V
- Low-impedance loudspeaker outputs:16 to 4 ohm
Tuner:
- Save your favourite stations
- Autoscan
- Manual scan
- FM frequencies : 87.00 MHz - 108.00 MHz
- Frequency hopping: 10 kHz
- Antenna : Unbalanced 75 ?
- AM frequencies : 522 kHz - 1611 kHz
- Frequency hopping : 9/10 kHz
- Antenna supplied
USB reader:
- Reading functions
- Searching functions
- Playlist programmations
- MP3 file readingVia a FAT32 formatted hard disk or USB key.
- CompatibleWith 500 Go devices
- 99 folders in 8 sub-directory levels
- Max sample rate: 320 kbps
Technical specifications :
- Power supply: 220 V 50-60 Hz
- Power consumption : 175 W
- RMS Max power: 130 W RMS
- Output level / Impedance: - 100 V - 70 V - 16-8 and 4 Ω
Dimensions : 483(W) x 89(H) x 366(D) mm NetWeight : 11.36 kg
