Impianto audio mono da 510 W, composto da un diffusore a colonna passivo iLINE83B (H10758), un supporto aggiuntivo impilabile iLINEspace60 (H10759), un subwoofer attivo iLINEsub12 A (H10761) e un convertitore da USB a RJ45 per il DSP del subwoofer attivo iLINEbox (H10762).

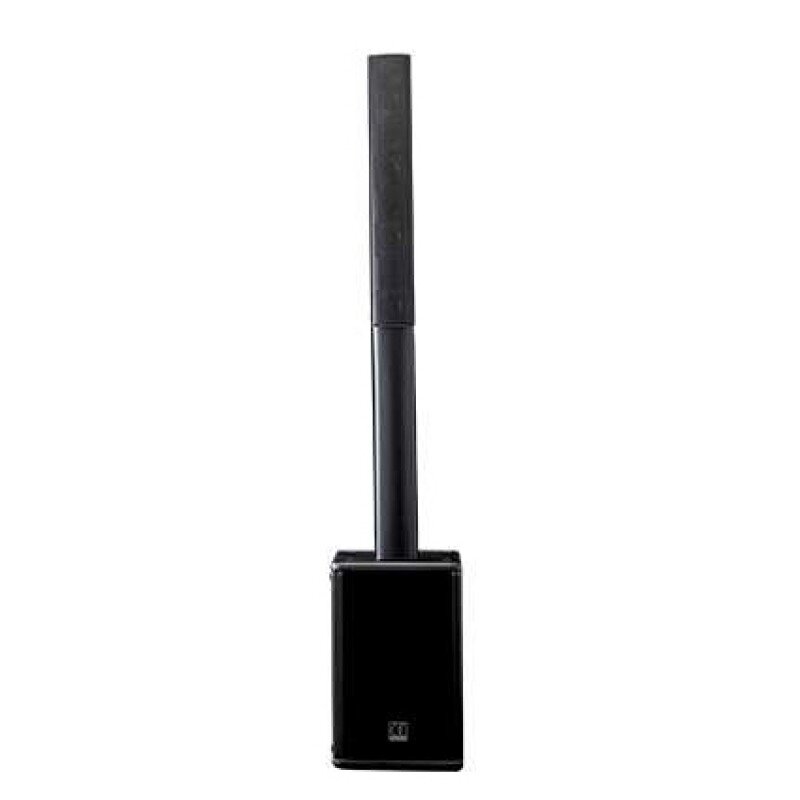

510 W mono sound system, consisting of an iLINE83B passive column speaker (H10758), an additional stackable iLINEspace60 stand (H10759), an iLINEsub12 A active subwoofer (H10761) and a USB to RJ45 converter for the DSP of the iLINEbox active subwoofer (H10762).
Système audio mono 510 W, composé d'une enceinte colonne passive iLINE83B (H10758), d'un support empilable supplémentaire iLINEspace60 (H10759), d'un caisson de basses actif iLINEsub12 A (H10761) et d'un convertisseur USB vers RJ45 pour le DSP du caisson de basses actif iLINEbox (H10762).
Technical characteristics
iLINE83B
| Power handling | 160 WRMS / 320 W max. |
| Frequency response | 135 Hz - 17 kHz |
| Sensitivity | 95 dB/W/m |
| SPL max. | 120 dB |
| Nominal impedance | 16 ohm |
| Speakers | 8 x 3" |
| Dispersion (H x V) | 115° x 20° |
| Connectors | connector base |
| Materials | die-cast aluminium housing integral steel grill protection |
| Dimensions | 11 x 77 x 14.8 cm |
| NetWeight | 7.6 kg |
iLINEsub12 A
| Power | 700 W @ 4 ohm + 700 W @ 4 ohm |
| Frequency response | 50 Hz – 200 Hz |
| Axial sensitivity | 96 dB/W/m |
| Max SPL | 124 dB |
| Nominal impedance | 8 ohm |
| Driver | 12" |
| Connectors – input | balanced line-level XLR |
| Connectors – outputs | amplified speakON bass/treble: 1+/1- wideband output – 2+/2- bass output |
| Power supply | IN/OUT on powerCON: 220 – 240 VAC 50/60 Hz 20 A |
| DSP – I/O | IN/OUT on RJ45 plug |
| Amplification – total power | 700 + 700 WRMS @ 4 ohm |
| Amplification – wideband outputs | 700 WRMS @ 4 ohm |
| Amplification – bass outputs | 350 WRMS @ 8 ohm + 350 WRMS @ 8 ohm (internal) |
| Settings – volume | general system level |
| Settings – DSP | 28/56 bit, 50 MIPS |
| System adjustment | via software supplied with the iLINEbox |
| Materials | finnish birch plywood, black polyurea resin, integral metal grid |
| Floorstanding speaker connection | two 35 mm headers with integrated connector |
| Dimensions | 35 × 51.5 × 49 cm |
| Net weight | 23.5 kg |
