Impianto audio stereo da 2680 W composto da 4 x diffusori a colonna iLINE43 (H10754), 4 x supporti iLINE24sup (H10773), 2 subwoofer x iLINEsub12 A (H10761) e 1 convertitore iLINEbox da USB a RJ45 per il DSP del iLINEsub12 A (H10762).

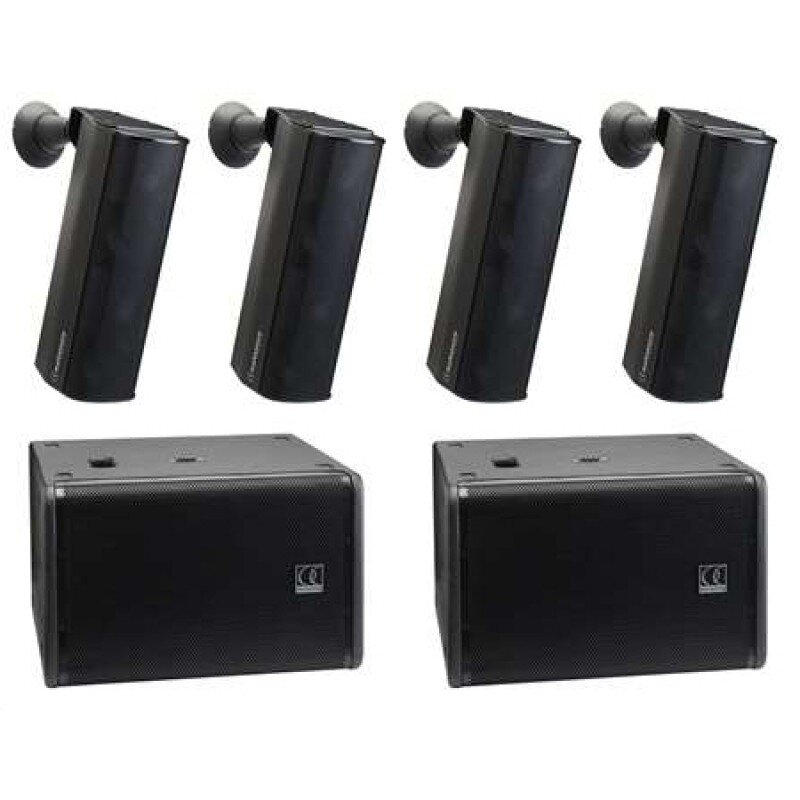

2680 W stereo sound system consisting of 4 x iLINE43 column loudspeakers (H10754), 4 x iLINE24sup stands (H10773), 2 x iLINEsub12 A subwoofers (H10761) and 1 iLINEbox USB to RJ45 converter for the DSP of the iLINEsub12 A (H10762).
Système audio stéréo de 2680 W composé de 4 enceintes colonnes iLINE43 (H10754), 4 supports iLINE24sup (H10773), 2 subwoofers iLINEsub12 A (H10761) et 1 convertisseur iLINEbox USB vers RJ45 pour le DSP du iLINEsub12 A (H10762).
Technical characteristics
iLINE43
| Power handling | 80 WRMS / 160 W max. |
| Frequency response | 135 Hz - 17 kHz |
| Sensitivity | 92 dB/W/m |
| SPL max. | 114 dB |
| Nominal impedance | 8 ohm |
| Speakers | 4 x 3" |
| Horizontal dispersion | 115° |
| Vertical dispersion | 20° |
| Connectors | IN/OUT speakON |
| Materials | die-cast aluminium housing integral steel grill protection |
| Mounting systems | wall mout bracket plate: iLINE43sup mounting socket for speaker stand |
| Dimensions | 11 x 35 x 14.8 cm |
| Net weight | 4 kg |
iLINE24sup
| Material | steel |
| Finishing | black polyurethane paint |
| Angle | 45° |
iLINEsub12 A
| Power | 700 W @ 4 ohm + 700 W @ 4 ohm |
| Frequency response | 50 Hz – 200 Hz |
| Axial sensitivity | 96 dB/W/m |
| Max. SPL | 124 dB |
| Nominal impedance | 8 ohm |
| Driver | 12" |
| Input | balanced line-level XLR |
| Outputs | amplified speakON bass / treble: 1+/1- wideband output – 2+/2- bass output |
| Power supply | IN/OUT on powerCON: 220 - 240 VAC 50/60 Hz 20 A |
| DSP | yes |
| Input / output | on RJ45 plug |
| Total power available | 700 + 700 WRMS @ 4 ohm |
| Wideband outputs | 700 WRMS @ 4 ohm |
| Bass outputs | 350 WRMS @ 8 ohm + 350 W RMS @ 8 ohm internal |
| Volume | general system level |
| DSP | 28/56 bit, 50 MIPS |
| System adjustment | via the software supplied with the iLINEbox |
| Materials | finnish birch plywood, black polyurea resin, integral metal grid |
| Floorstanding loudspeaker connection systems | two 35 mm headers with integrated connector |
| Dimensions | 35 x 51.5 x 49 cm |
| Net weight | 23.5 kg |
iLINEbox
| Connectors | RJ45, USB B |
| Provided with | USB A / USB B cord |
| Dimensions | 56 x 58 x 23 mm |
| Weight | 65 g |
