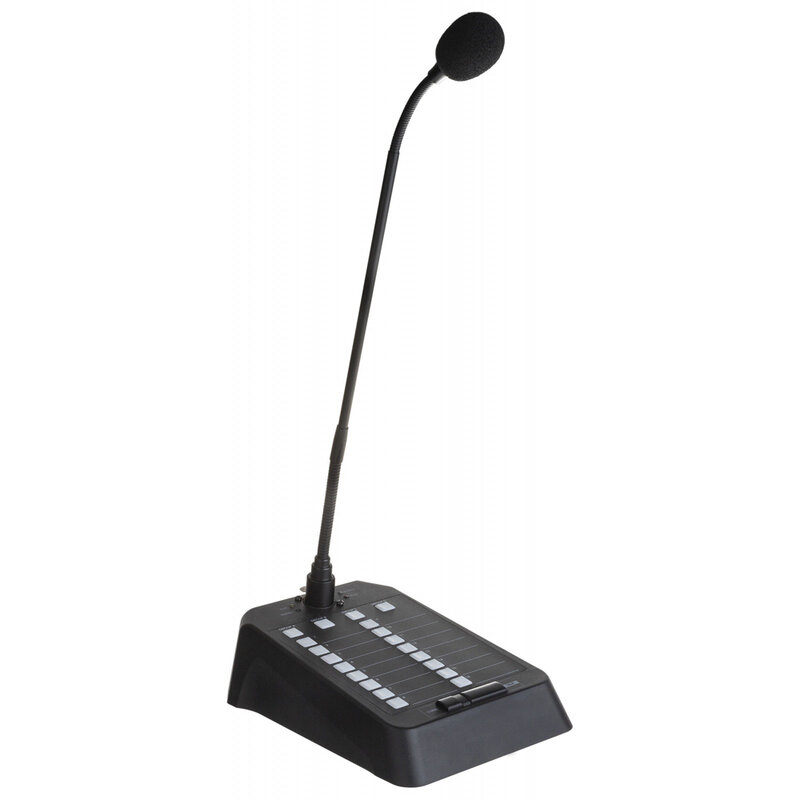

Console microfonica a 16 zone progettata per essere utilizzata con una matrice audio nei sistemi di diffusione sonora PA.
16-zone microphone desk designed for use with an audio matrix in PA sound reinforcement systems.
Console microphonique à 16 zones conçue pour être utilisée avec une matrice audio dans les systèmes de sonorisation PA.
Dati tecnici
Technical characteristics
- 1 x microphone input on XLR in front

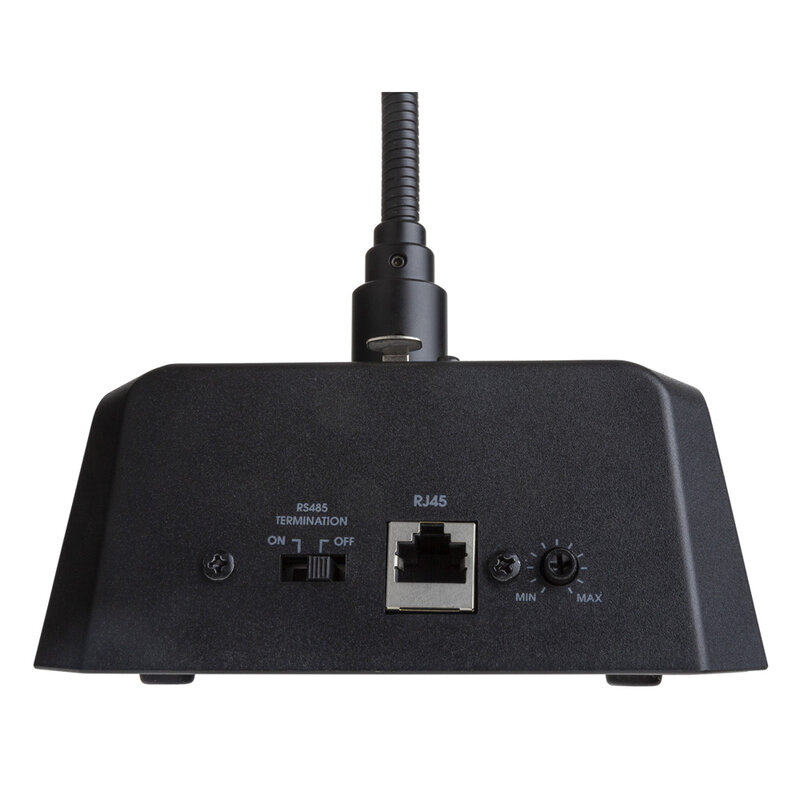

- 1 x RJ45 output at the back

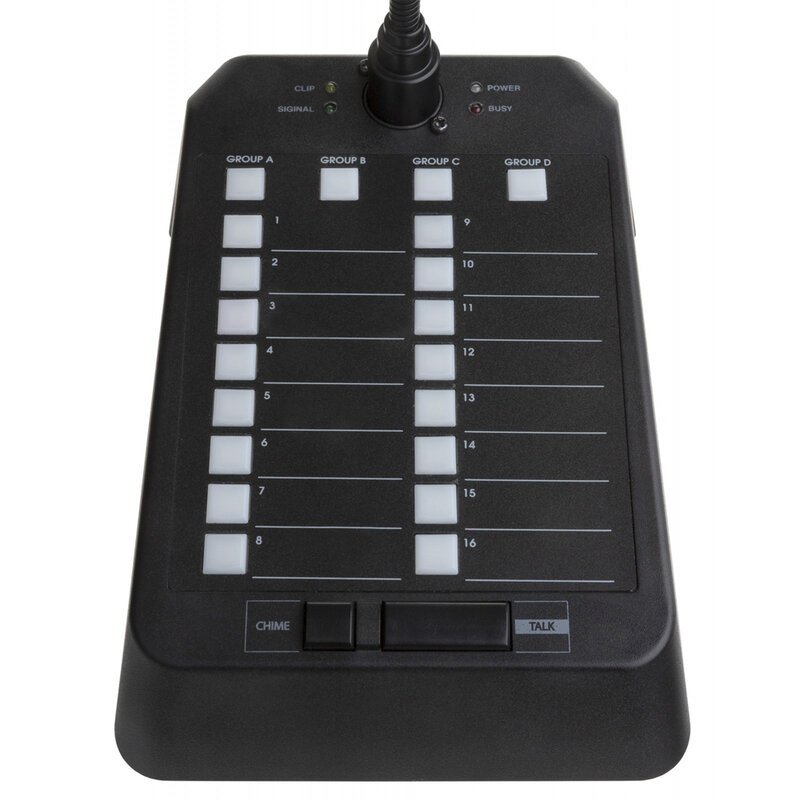

- Talk button on the front panel to engage the microphone
- Chime button on front panel to start the chime
- Volume control (microphone and chime) on the back
- Switch lock / unlock to block the selection of zones LED level display
- Power supply via RJ45 cable from the PREZONE88
- Input sensitivity: -60 dB ±3 dB / 600 ohms balanced
- T.H.D.: less than 0.1%
- Frequency response: 45 Hz - 15 kHz
- SNR: less than 90 dB
- Output level: 0 dB / 600 ohms
- Dimensions: 14 x 6 x 20.5 cm
- Weight: 0.9 kg
-
