Kit amplificatore a loop magnetico per reception, banco, cassa e piccoli ambienti.
Magnetic loop amplifier kit for reception desk, counter, cash desk and small rooms.
Kit amplificateur à boucle magnétique pour réception, comptoir, caisse et petits espaces.
Dati tecnici
Technical characteristics
Inputs
- Audio inputs: 2 (1 micro or line input and 1 line input)
- Type: 3.5 mm TRS-F mini-jack, Euroblock / Phoenix terminal block
- Phantom: 4.5 V 1 mA
Audio processor
- Compressor: variable 1:1 to 20:1
- Etching: 10 mS
- Descent: automatic 500 ms or 1500 ms
- Noise reduction: bandwith limits for 8 kHz total gain, 16 kHz to -6 dB
- Dynamic: > 60 dB
- THD+N: < 0.5% at 1 kHz
Output
- Type: current
- Loop resistance: 0,1 ohm to 1 ohm
- Peak current: 5 A
- RMS current: 3.5 A at 1 kHz
- Protection: thermal, short-circuit and start
Power supply
- Power supply: 12 VDC 1.5 A
- Type: separated power block
- Mains systems: 230 VAC 50/60 Hz
- Power: 20 W max.
- Fuse: thermal protection
Dimensions and weight
- BM-KIT (L x H x P): 92 x 52 x 18 mm
- Weight: 350 g
What's in the box

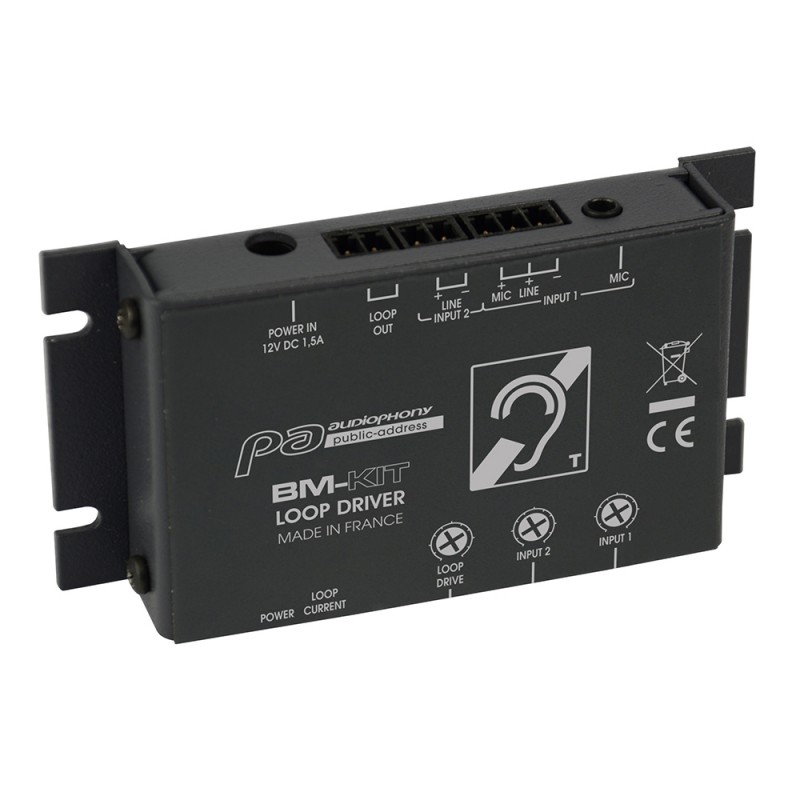

- 1 x BM-KIT induction loop amplifier

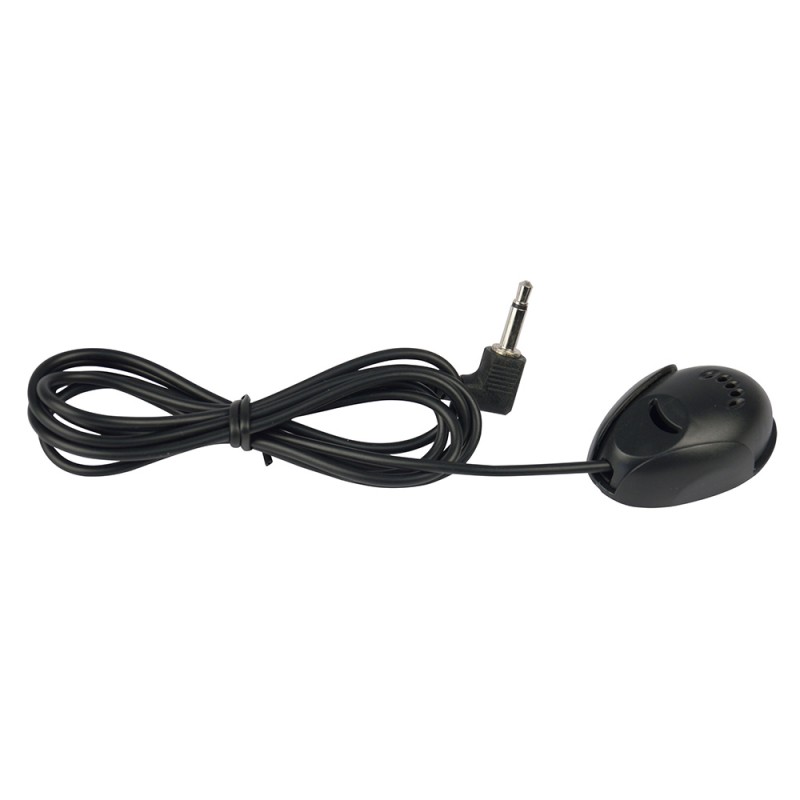

- 1 x surface microphone
- 1 x 12 V power supply + power cord
- 1 x loop adapter with cable
- x 6 adhesive clips for cables
- 2 x 2 points connectors
- 1 x 3 points connectors
- 2 x stickers “Adapted for hearing impaired area”
- 1 x user guide
