H9902 - PREZONE642

10-channel, dual-zone preamplifier mixer designed for professional installations, 6 MIC / line inputs, 4 stereo inputs and independent EQ and output control for each zone

585.30€ Prezzo di listino (IVA esclusa)

Descrizione
ITENFR

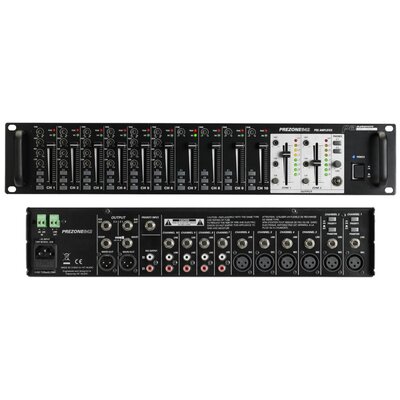

PREZONE642 è un mixer / preamplificatore professionale a 10 ingressi per 2 zone completamente indipendenti.

Offre 6 ingressi MIC / line con alimentazione Phantom e priorità microfono, oltre a 4 ingressi stereo. Ogni zona dispone di uscite bilanciate, equalizzazione a 2 bande e controllo sub dedicato. Il pannello frontale include VU meter LED per il monitoraggio preciso dei livelli di ogni zona. È ideale per installazioni fisse grazie alla doppia alimentazione in alternata e continua (230 V e 24 VDC), al formato rack 19" e alla gestione avanzata delle priorità e del routing audio.

PREZONE642 is a professional 10-input mixer / preamplifier for 2 completely independent zones.

It offers 6 MIC / line inputs with Phantom power and microphone priority, as well as 4 stereo inputs. Each zone has balanced outputs, 2-band equalization and dedicated sub control. The front panel includes LED VU meters for precise monitoring of the levels of each zone. It is ideal for fixed installations thanks to the dual AC and DC power supply (230 V and 24 VDC), the 19" rack format and the advanced management of audio priorities and routing.

PREZONE642 est un mixeur/préamplificateur professionnel à 10 entrées pour 2 zones totalement indépendantes.

Il offre 6 entrées MIC/ligne avec alimentation fantôme et priorité micro, ainsi que 4 entrées stéréo. Chaque zone dispose de sorties symétriques, d'un égaliseur à 2 bandes et d'une commande de sous-groupe dédiée. Le panneau avant comprend des VU-mètres à LED pour un contrôle précis du niveau de chaque zone. Il est idéal pour les installations fixes grâce à sa double alimentation AC et DC (230 V et 24 VDC), son format rack 19", son routage audio avancé et sa gestion des priorités.

Dati tecnici

Technical characteristics

  • 6 mono MIC / line input via XLR-3F / 6.35 mm TS jack
  • Phantom power supply and Talkover on channel 1 and 2
  • Inputs: 4 RCA and 6.35 mm TRS jack
  • Priority input: 6.35 mm
  • TS jack Zone 1 and 2 mono balanced XLR3-M outputs
  • Zone insert: 6.35 TRS-F jack
  • SUB output per zone: 6.35 TRS-F 1 jack
  • RCA balanced stereo REC output
  • 3-way tone and gain control via MIC inputs
  • Gain control via stereo inputs
  • 2-way tone control per zone
  • SUB volume control per zone
  • Installer-dedicated settings accessible with a screwdriver
  • Zone assignation, PFL on each channel strip
  • LED peak and signal display
  • A 8-LED meter displays the output level for each zone
  • Headset output with volume control (zones and PFL)
  • Power supply: 230 VAC 50/60  Hz
  • 24 VDC with Link Out emergency power supply
  • Power consumpiton: 16 W
  • Frequency response: 20 Hz - 20  kHz (±3 dB)
  • T.H.D (1 kHz nominal power): < 0.2%
  • Equalizer:
    • High: ±12  dB @ 12.5  kHz
    • Mid: ±12  dB @ 2.5  kHz
    • Low: ±12  dB @ 80  Hz
  • Mountable in 19" rack
  • Height: 2U
  • Dimensions: 48.2 x 29.5 x 8.5 cm
  • Weight: 5 kg
