H10508 - WP-1

Wall-mounted controller for ZONEAMP4120 or PREZONE444

34.58€ Prezzo di listino (IVA esclusa)

Descrizione
ITENFR

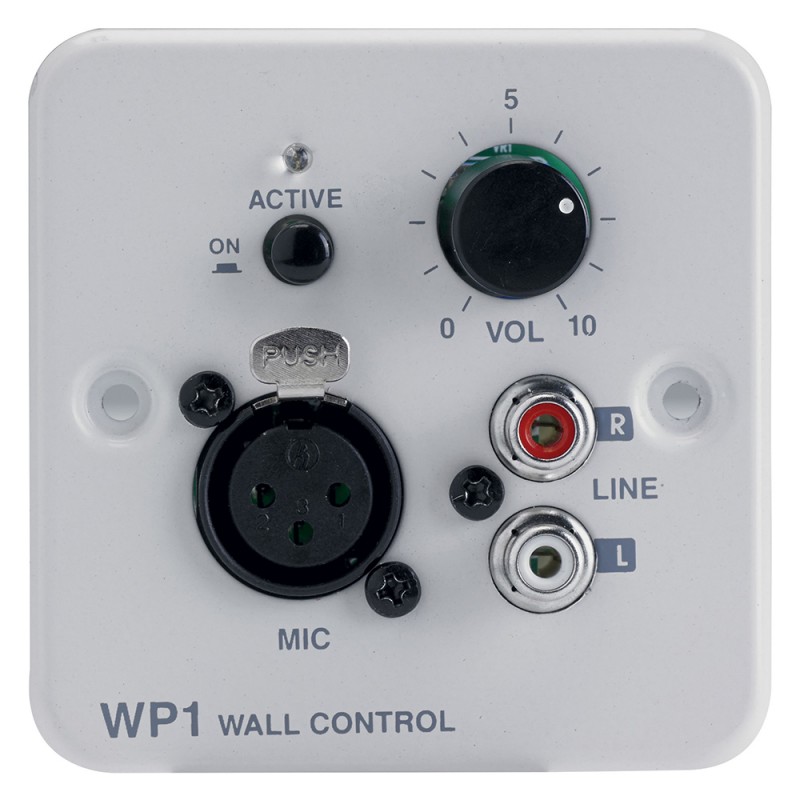

Controller da parete per ZONEAMP4120 e PREZONE444.

Consente di collegare un microfono o un lettore esterno al canale scelto. Accesso diretto ai controlli del volume sul controller. Alimentato dall'amplificatore tramite RJ45.

Wall controller for ZONEAMP4120 and PREZONE444.

Allows you to connect an external microphone or player to the selected channel. Direct access to the volume controls on the controller. Powered by the amplifier via RJ45.

Contrôleur mural pour ZONEAMP4120 et PREZONE444.

Permet de connecter un microphone ou un lecteur externe au canal sélectionné. Accès direct aux commandes du volume sur le contrôleur. Alimenté par l’amplificateur via RJ45.

Dati tecnici

Technical characteristics

  • Inputs: 1 x XLR3-F MIC (front)
  • 1 x RCA line (front)
  • 1 x RJ45 output (rear)
  • Volume settings on front panel
  • ON/OFF switch
  • LED VU meter
  • 15 VDC power supply via RJ45 cable from your ZONEAMP4120 or PREZONE444
  • Operating range between WP-1 et the zone mixer: 200 m with category 6 cable
  • Frequency response: 20 Hz - 20 kHz
  • T.H.D. (1 kHz nominal power): < 0.1%
  • Dimensions: 80 x 80 x 50 mm
  • Weight: 0.2 kg
