Set composto da un ricevitore True Diversity UHF 863 - 865 MHz, un microfono ad archetto e un bodypack.
Custodia per il trasporto inclusa.

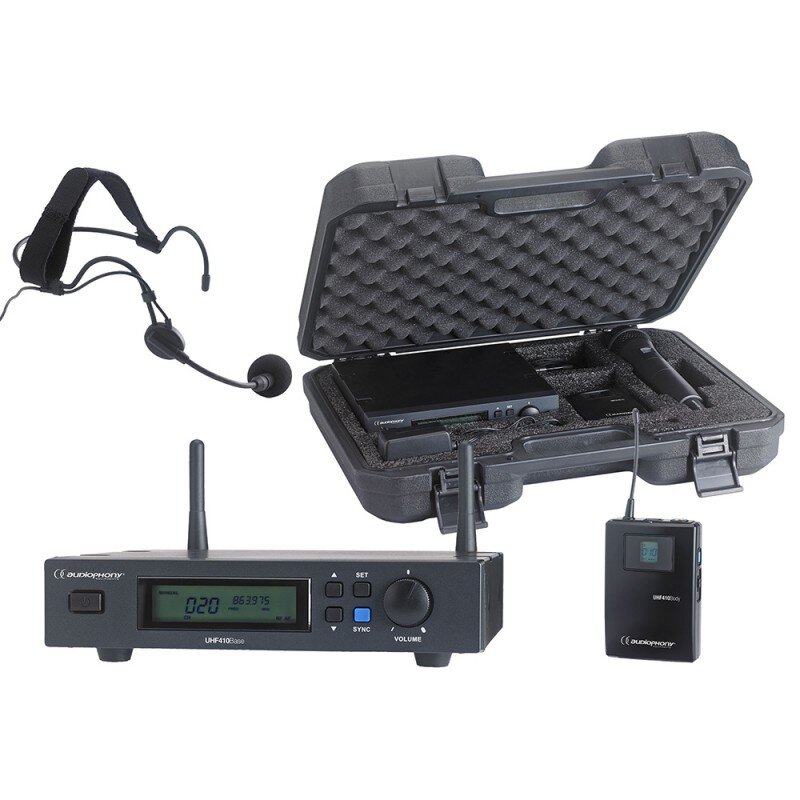

Set including a UHF 863 - 865 MHz True Diversity receiver, a headworn microphone and a bodypack.
Transport case included.
Ensemble composé d'un récepteur True Diversity UHF 863 - 865 MHz, d'un microphone serre-tête et d'un émetteur de poche.
Étui de transport inclus.
Dati tecnici
Technical characteristics
Headset microphone
- Microphone type: electret condenser
- Sensitivity: -47 ±4 dB
- Directivity: cardioid
- Frequency response: 100 Hz - 10 kHz
- Max current: 10 V
- Standard current: 1.5 V
- Power consumption: 0.5 mA max.
- S/N ratio: more than 60 dB
- Supplied accessory: windshield
Bodypack transmitter
- Frequency ranges: UHF 863 - 865 MHz
- Max power: 10 mW (max.)
- 40 channels with auto-scan function
- LCD display: channel, batterie level
- MIC input via mini-XLR
- Gain level: -10 / 0 / +10 dB
- Power supply: 2 x AA type 1.5 V batteries (not supplied)
UHF40 - base receiver
- True Diversity receiver
- Frequency range: UHF 863 - 865 MHz
- 40 preset frequencies with auto-scan function
- Channels presets: 4 groups, 4 compatible channels per group
- Channels selection: Tact Switch, Auto-Scan, sync
- LCD display: frequencie, group, canal, RF & AF
- XLR and 6.35 mm jack mono balanced and unbalanced audio output
- Line or MIC level
- Oscillator: PLL Synthesiser
- Frequence stability: ±0,005%
- Modulation: FM
- T.H.D.: < 1% (@ 1 kHz)
- Audio frequency response: 80 Hz - 18 kHz
- Volume adjust with the front control knob
- Squelch adjusting setting with the rear control knob
- BNC removable antennas, many accessories available
- Power supply: 12 VDC (adapter supplied)
- Power consumption: 260 mA ±10 mA
