B04547 - BT-VINTAGE

Vintagestudio lamp, RGB-effect - HPL-575 lamp
NON DISP.

1,476.10€ Prezzo di listino (IVA esclusa)

Descrizione

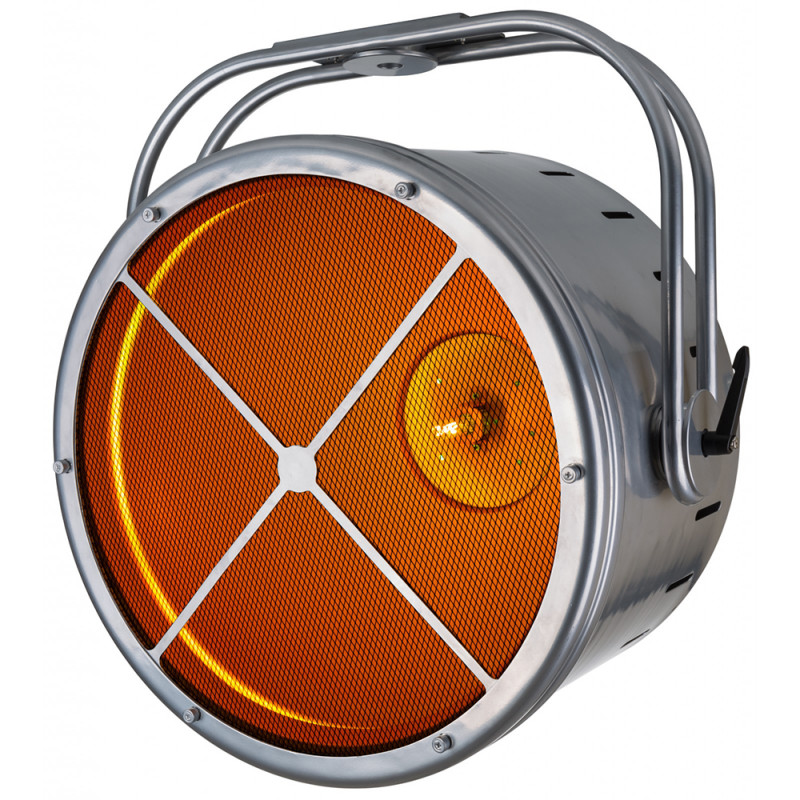

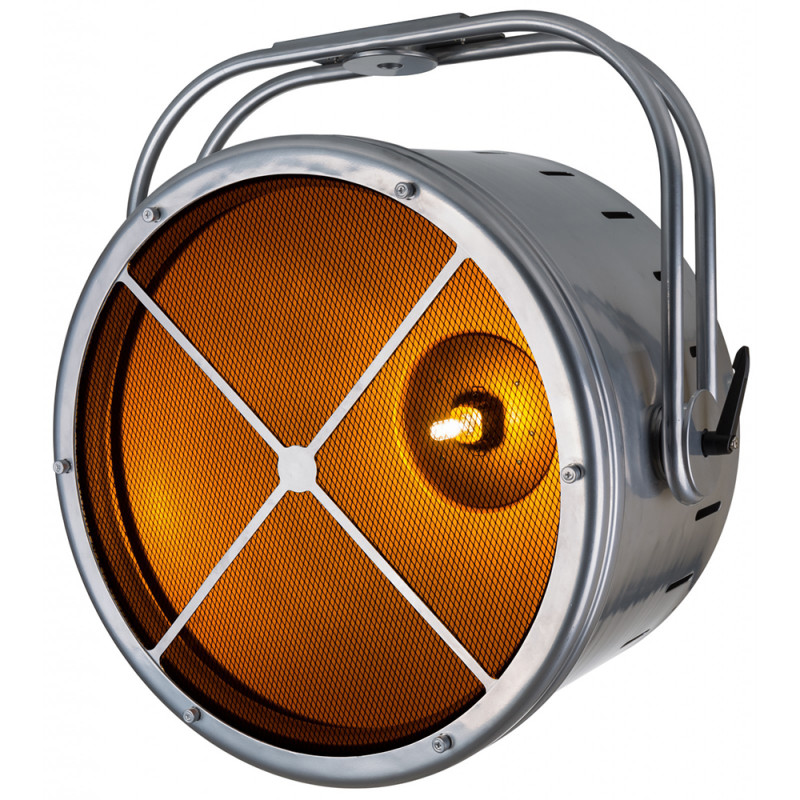

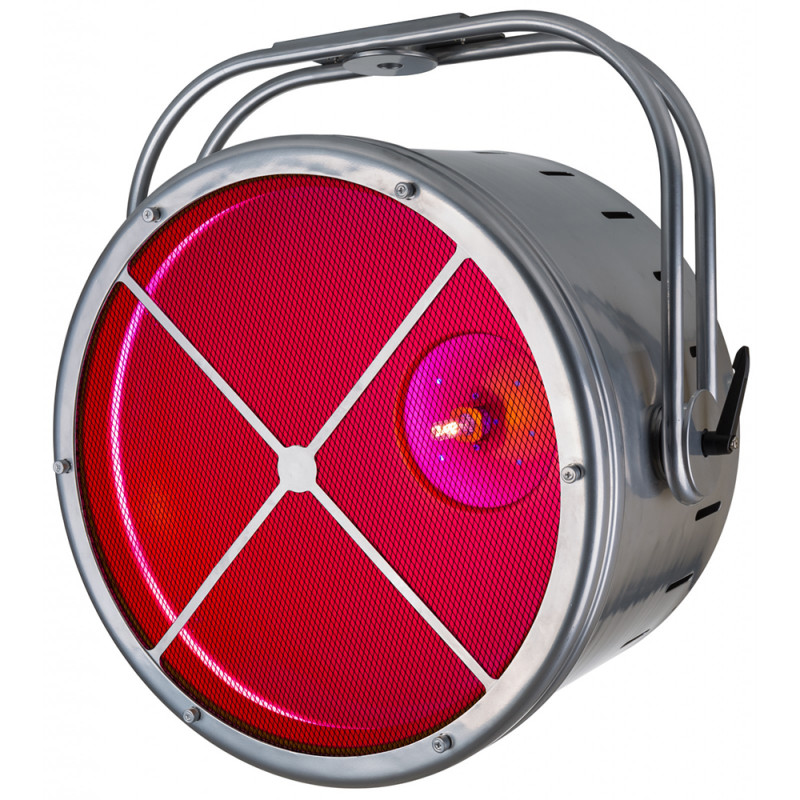

Proiettore vintage in stile retrò per installazioni scenografiche a luce calda. PROIETTORE: Riflettore in stile retrò alogeno + LED RGB per dare un aspetto vintage alla scenografia di studi televisivi, lounge e palchi da concerto. SORGENTE LUCE: Una combinazione di lampada alogena HPL-575 (non inclusa) con base G9.5 e LED RGB ad alta potenza (156 x 3W) in un riflettore dal colore dorato. Sistema di raffreddamento passivo e frequenza di refresh LED 1200 Hz senza flickering. 4 curve dimmer: lineare, quadrata, quadrata inversa, curva a S. In caso di guasto DMX è possibile scegliere tra modalità blackout e freeze. CONTROLLO: controllo DMX sia per il dimmer della lampada alogena che per gli effetti RGB con diverse modalità di canale. Modalità Standalone e Master/Slave. Funzione RDM per la configurazione remota. Impostazioni di fabbrica predefinite + impostazioni utente. FUNZIONI: Regolazione del bilanciamento del bianco. DMX IN/OUT a 3 e 5 poli e Neutrik PowerCON IN/OUT per il collegamento ina cascata di più unità. Display LCD a matrice per la navigazione nel menu di configurazione. Design brevettato e registrato (brevetti n° 004051803-0001 ~ 004051803-0002). ACCESSORI: Predisposto per l'utilizzo con staffe omega per una rapida installazione. Predisposto per il controllo DMX wireless con DONGLE WTR-DMX opzionale. Flight case opzionale per 2 unità disponibile.

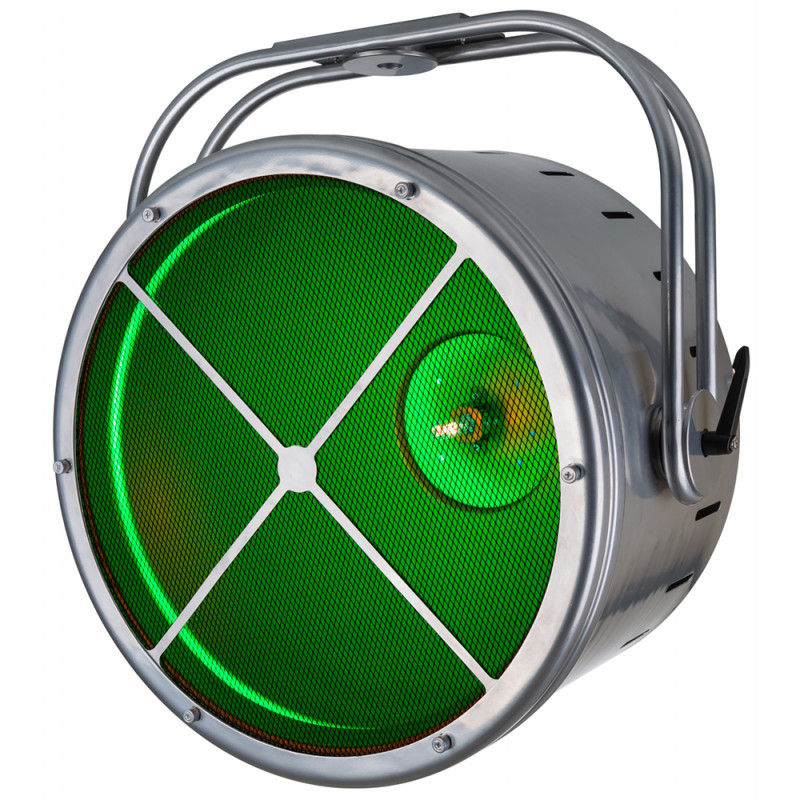

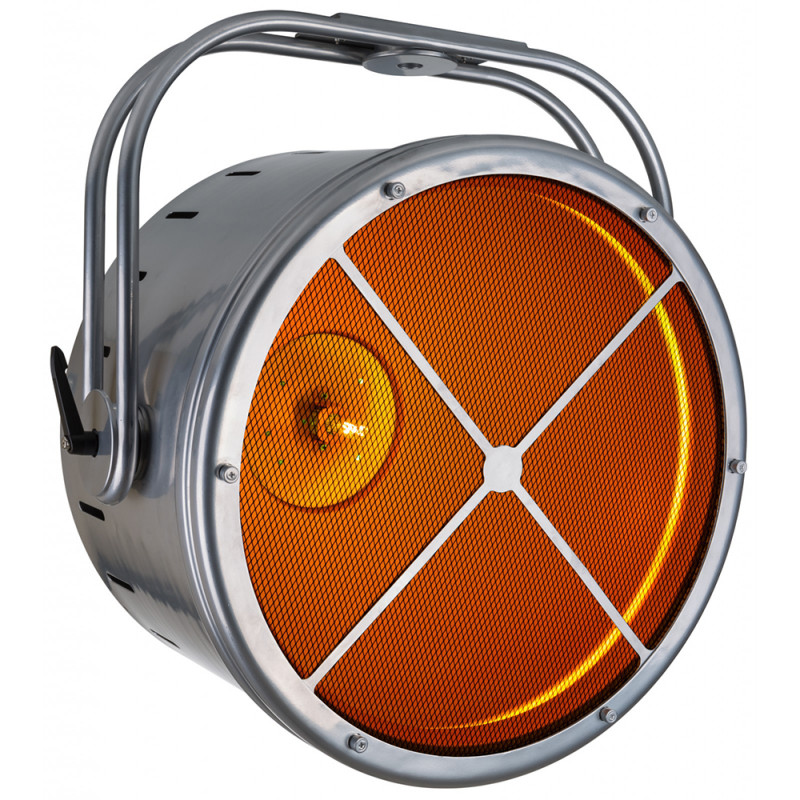

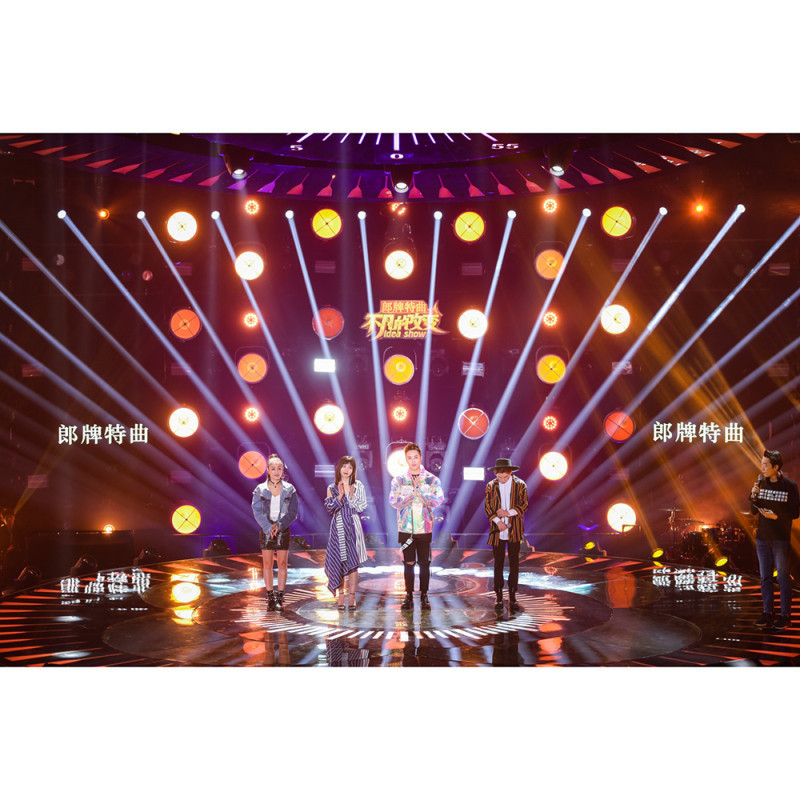

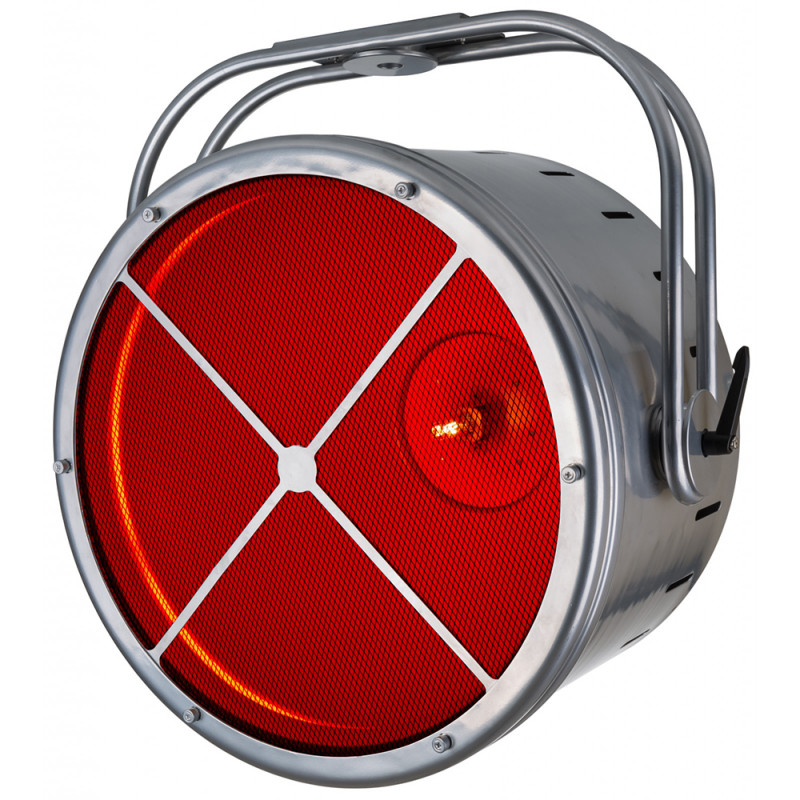

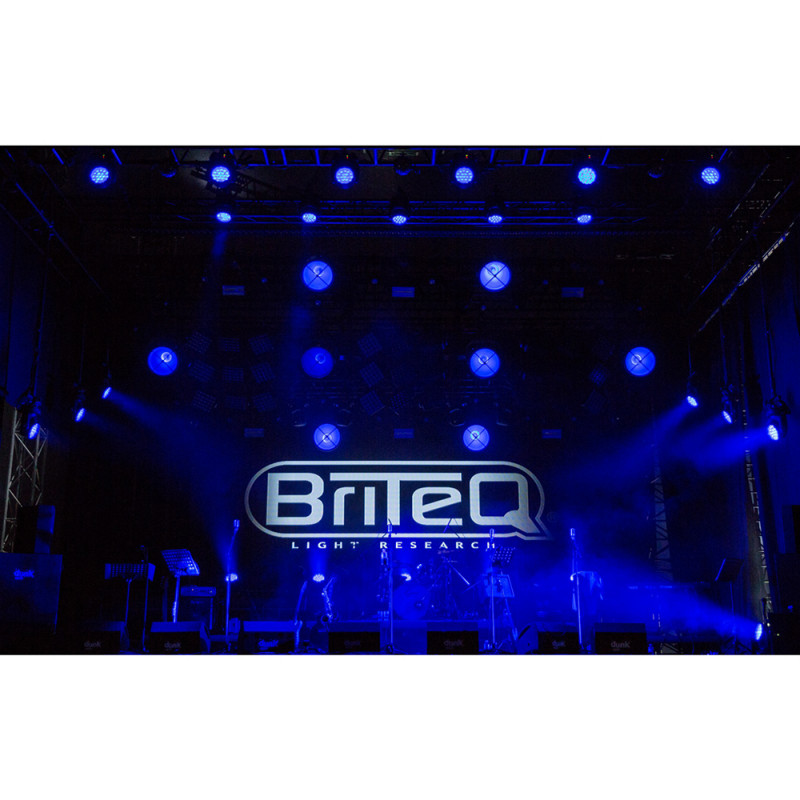

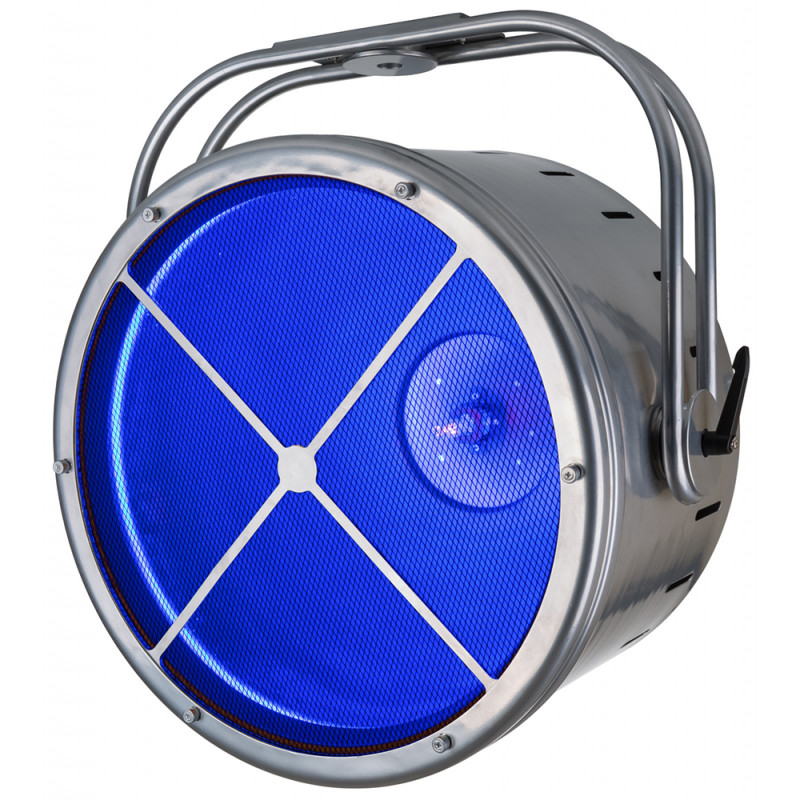

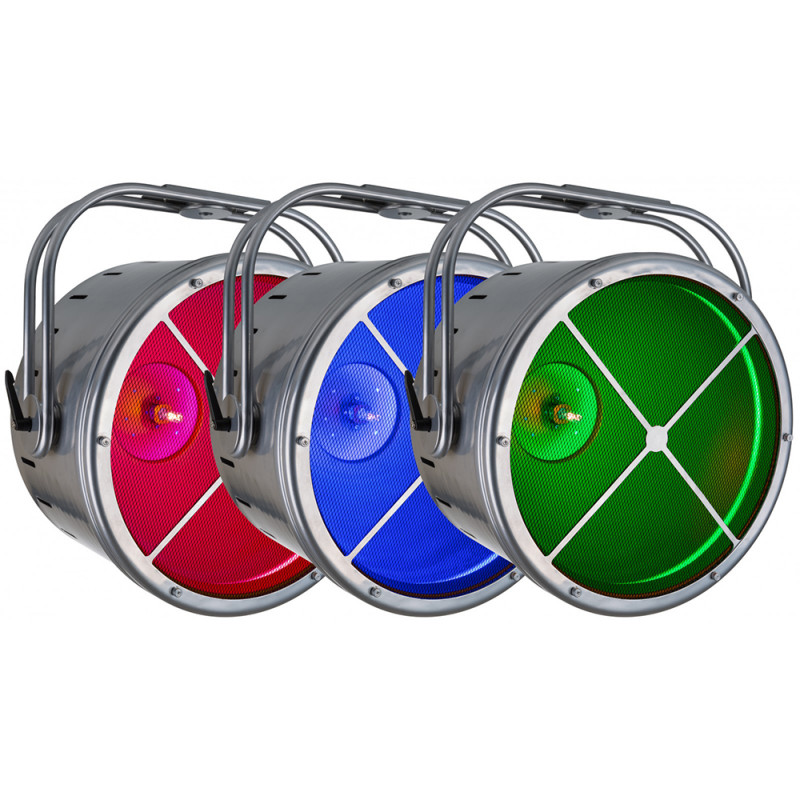

Vintage retro style projector for warm lighting stage installation. FIXTURE TYPE: Halogen + RGB LED retro style reflector to give a vintage look to the set design of TV studios, lounges and concert stages. LIGHT SOURCE: A smart combination and HPL-575 halogen lamp (not included) with G9.5 base and high power RGB LEDs (156 x 3W) in a gold colored housing reflector. Passive cooling system and flicker free 1200 Hz LED refresh rate. 4 dimmer curves: linear, square, inverse square, S-curve. In case of DMX failure you can choose between Standalone, blackout and freeze mode. CONTROL: DMX control both for the halogen lamp dimmer & for the RGB effects with different channel modes. Standalone and Master/Slave modes. RDM function for easy remote setup. Default factory settings + user settings. FEATURES: White balance adjustment. 3-pin & 5-pin DMX IN/OUT and Neutrik PowerCON IN/OUT for daisy chaining of several units. Matrix LCD-display for setup menu navigation. Protected and registered design (design patents n°004051803-0001 ~ 004051803-0002). ACCESSORIES: Prepared for use with omega brackets for fast installation. Prepared for wireless DMX-control with optional WTR-DMX DONGLE. Optional flight case for 2 units available.

Ce projecteur au style rétro est très attrayant de par son style. Il donne un style particulier et décoratif à vos scènes et prestations. C’est la combinaison intelligente d’un réflecteur doré, d’une lampe halogène HPL-575 base G9.5 non inclue et d’un anneau de 156 x LED RGB de 3W. Système de refroidissement passif et taux de rafraîchissement de 1200 Hz. 4 courbes de gradation : linéaire, carré, carré inversé, courbe en S. Choix d’un mode autonome ou black-out ou freeze en cas de défaillance du DMX. CONTRÔLE : mode DMX pour le contrôle du Dimmer de la lampe halogène et pour les effets RGB au travers de nombreux canaux. Mode autonome et mode maître/esclave. Fonctionnalité RDM pour une configuration à distance simple. Réglage d’usine et réglages utilisateur. CARACTERISTIQUES : balance des blancs ajustable. Connecteurs XLR DMX 3 et 5 broches entrée/sortie et connecteurs d’alimentation NeutrikPowerCON® entrée/sortie pour un câblage en série des projecteurs jusqu’à 16A, permettant une installation rapide. L’écran LCD permet une navigation facile à travers les différents menus de configuration. Il est protégé et son design est enregistré (design patents n°004051803-0001 ~ 004051803-0002). ACCESSOIRES : prêt à être utilisé avec des supports d’accroche type « OMEGA » pour une installation rapide et sécurisée. Contrôle DMX à distance sans fil prévu avec le WTR-DMX-DONGLE . En option le flight case pour 2 projecteurs est disponible.

Dati tecnici

General: Weight ( kg) 14
General: Power input AC 100 - 240V, 50/60 Hz
General: Energy Label No
General: Color aluminium
General: Display LCD
General: Fixation optional standard clamp, optional omega bracket
General: IP rating indoor
Control: manual No

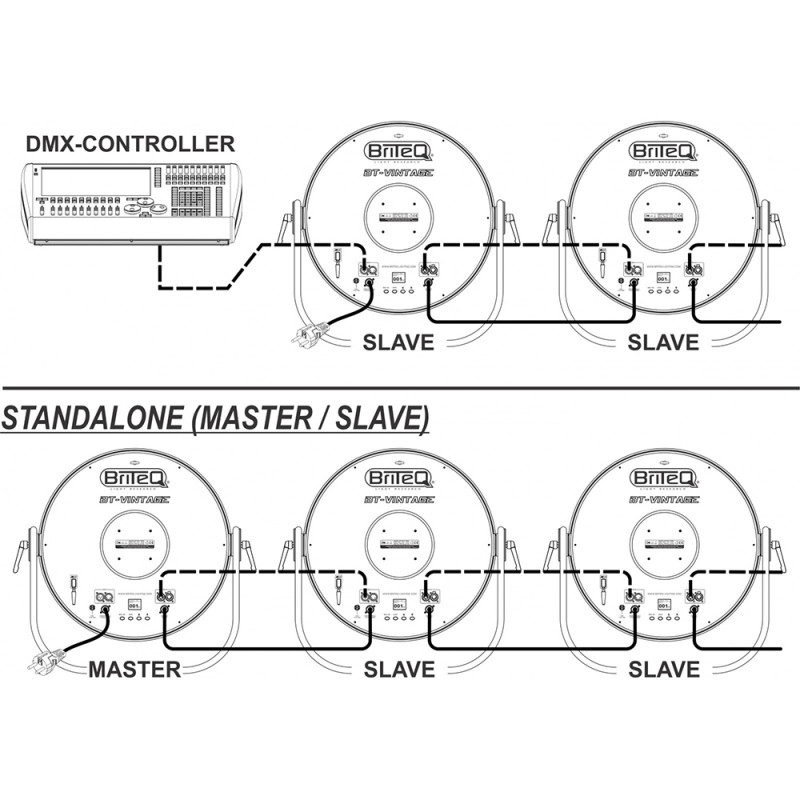

Control: Master/Slave Yes
Control: SMART-DMX No
Control: Standalone fixed
Control: programmable No
Control: upgradable software No
Light: lamp socket HPL-575
Light: lamp Halogen
Light: colors Red, Green, Blue, Warm white, RGB
Light: mix colors Yes
Light: min. refresh rate ( kHz) No
Light: max. refresh rate ( kHz) No

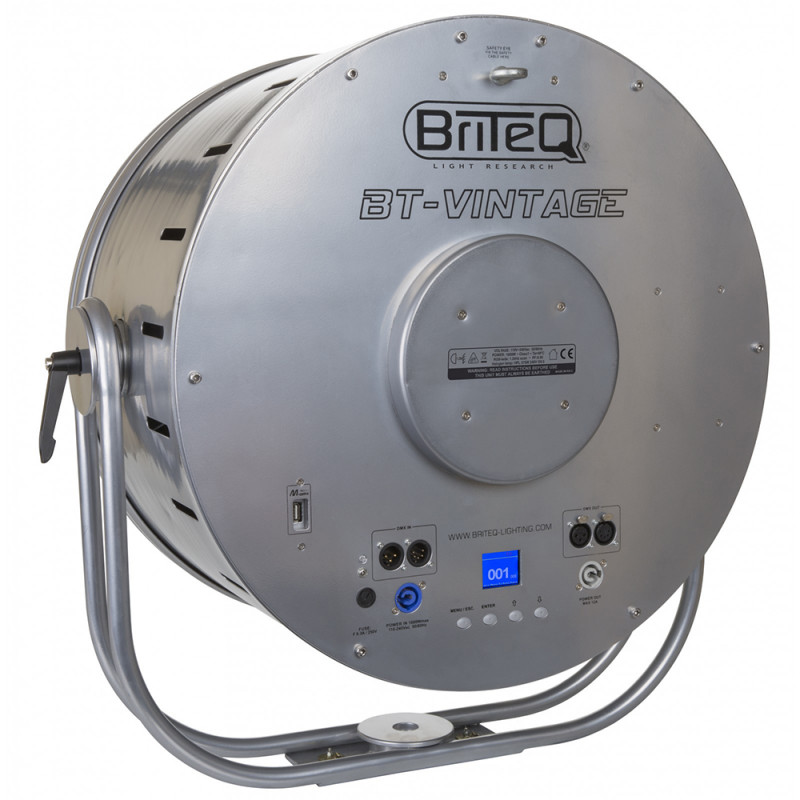

Connections: input 3-pin XLR, 5-pin XLR, powerCON, usb, wifi optional
Connections: output 3-pin XLR, 5-pin XLR, powerCON
