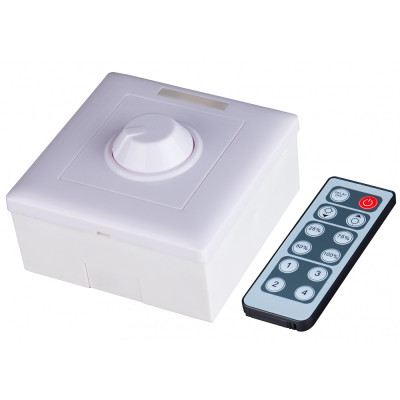

B05392 - LED 1CH DIM WALL

Wall dimmer 1 channel LED strips 12/24Vdc
NON DISP.

13.80€ Prezzo di listino (IVA esclusa)

Descrizione

Dimmer da parete a 1 canale per tutti i tipi di luci LED 12/24Vdc. Particolarmente indicato per strisce LED. Controllo remoto IR con 12 pulsanti incluso, con le seguenti funzionalità: - accensione/spegnimento - spegnimento ritardato: spegne le luci dopo 30 secondi - variazione dell'intensità (dimming) continua e fluida da 0 a 100% - 4 tasti con intensità programmate: 25%, 5'%, 75%, 100% - 4 pulsanti per intensità personalizzate dall'utente. Tecnologia PWM per cambio dell'intensità morbida e fluida, senza sfarfallio. Massima potenza d'uscita: 80W@12V, 160W@24V. Si connette direttamente alle strisce LED 1 colore e ad altre luci LED a tensione costante. Facile montaggio a parete, scatola da parete inclusa. Adatto a qualsiasi scatola da incasso a parete standard. Perfetto per installazione in negozi, case, bar, hotel ecc. L'uscita PWM può essere utilizzata per controllare qualsiasi LED a corrente costante dimmerabile.

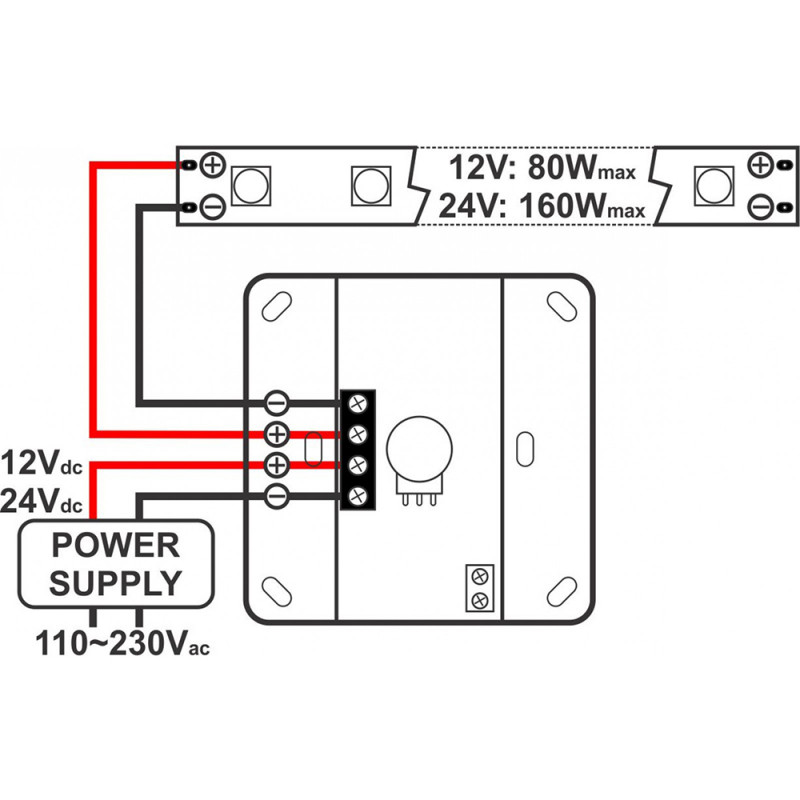

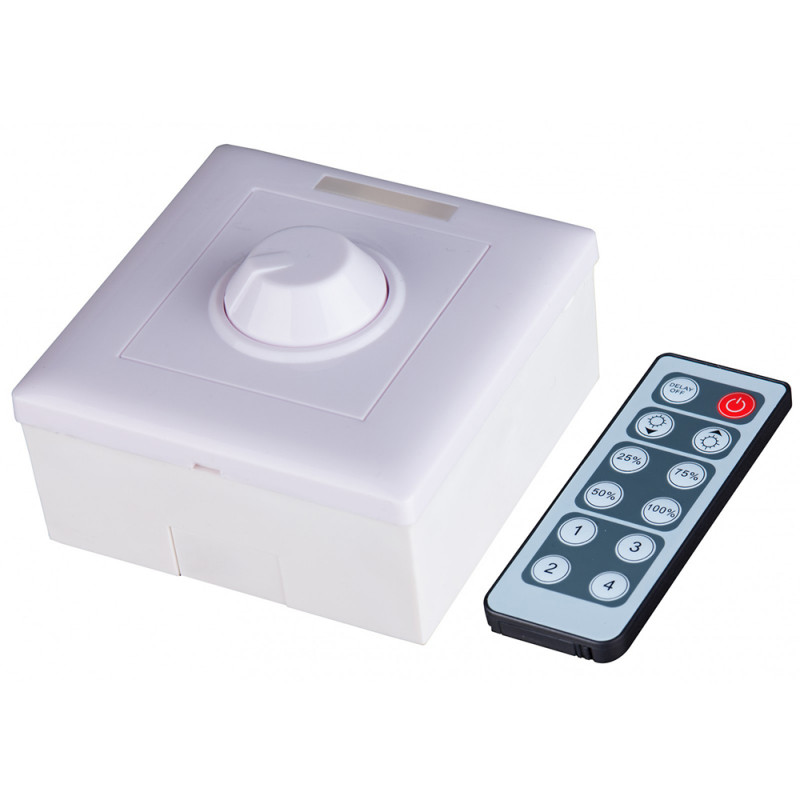

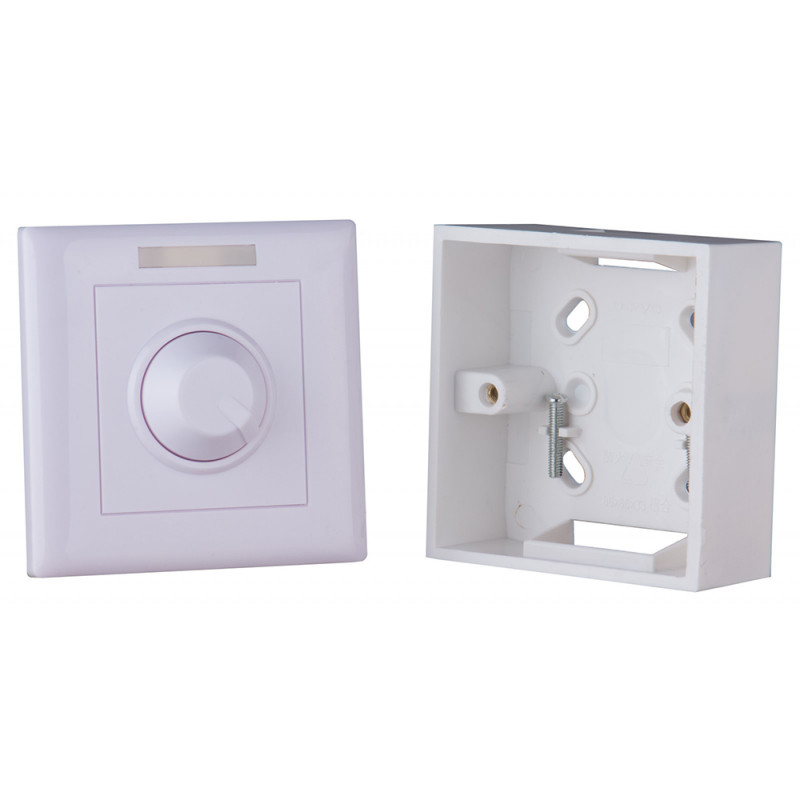

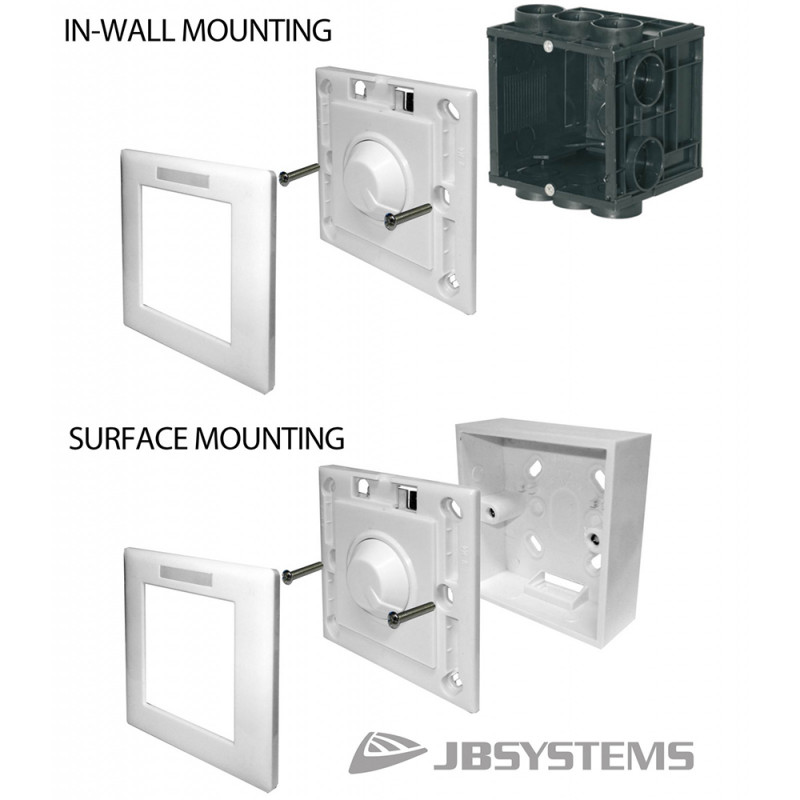

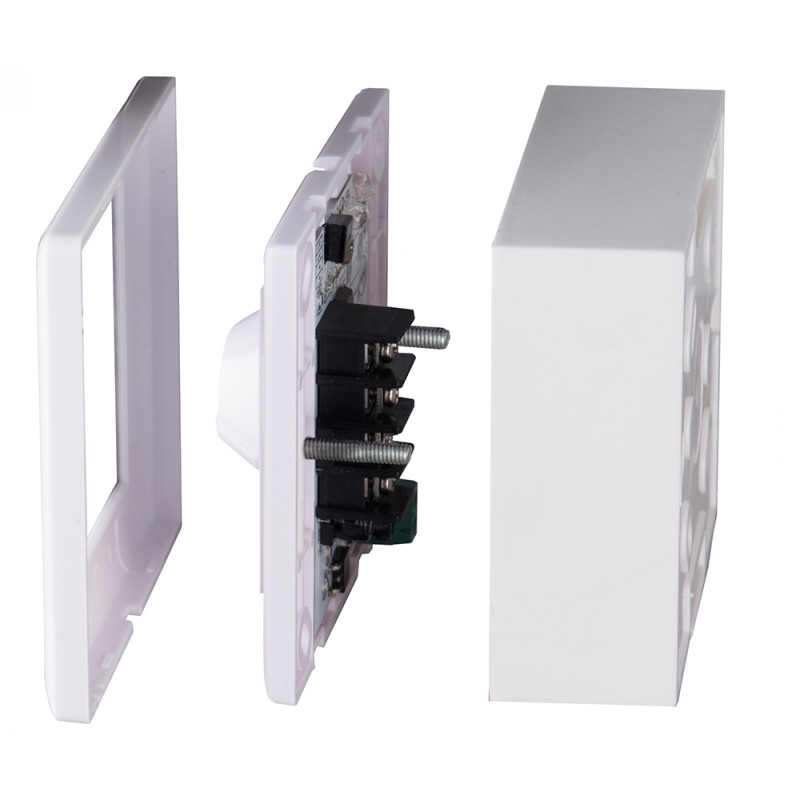

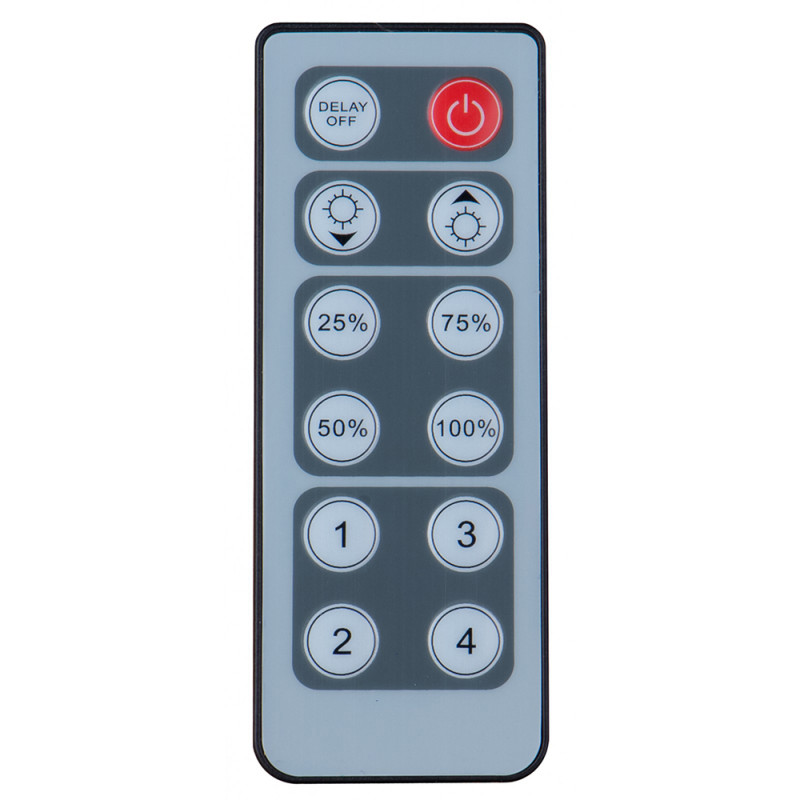

1Ch wall dimmer for all kinds of 12/24Vdc LED projectors or LED strips. 12-button IR-remote control included with very easy-to-use features: - Remote on/off - Delay off: light turns off after 30seconds - Seamless 0% - 100% dimming - 4 Dimmer hotkeys: 25%, 50%, 75%, 100% - 4 User programmable dimmer hotkeys PWM technology for smooth and flicker-free dimming from 0% to 100%. Max. output power: 80Watt @12V, 160Watt @ 24V Connects directly to 1color flexible LED-strips or other constant voltage LED lights. Designed for easy and stylish wall mounting. Fits in any standard recessed wall box. Surface-mounted box included. Perfect for use in LED installations for homes, shops, bars, hotels etc. The PWM-output can be used to control dimmable constant current led drivers.

Variateur mural à 1 canal pour tous les types de lumières LED 12/24Vdc. Particulièrement adapté aux rubans LED monochromes. Télécommande IR 12 boutons, avec les caractéristiques suivantes : - marche/arrêt - extinction retardée : éteint les lumières après 30 secondes - variation continue et progressive de l'intensité de 0 à 100% - 4 boutons avec intensités programmées : 25 %, 50 %, 75 %, 100 % - 4 boutons pour les intensités personnalisées. Technologie PWM pour un changement d'intensité doux et régulier sans scintillement. Puissance de sortie maximale : 80W@12 V, 160 W@24 V. le variateur se connecte directement à des rubans à LED monocouleur ou à d'autres LED à tension constante. Conçu pour un montage mural facile et élégant. S'adapte à tout type de boîtier mural encastré. Boîtier de montage en surface inclus. Parfait pour une installation dans les maisons, les magasins, les bars, les hôtels, etc. La sortie PWM peut être utilisée pour contrôler n'importe quelle LED à courant constant et variable.

Dati tecnici




General : Dimensions (cm) 8,7 x 8,7 x 5,3
General : Weight (kg) 0.13
General : Powerinput 24Vdc, 12Vdc
General : Energy Label N/A
General : Color white
General : Display none
General : IP rating indoor
Control : programmable No
Control : upgradable software No
