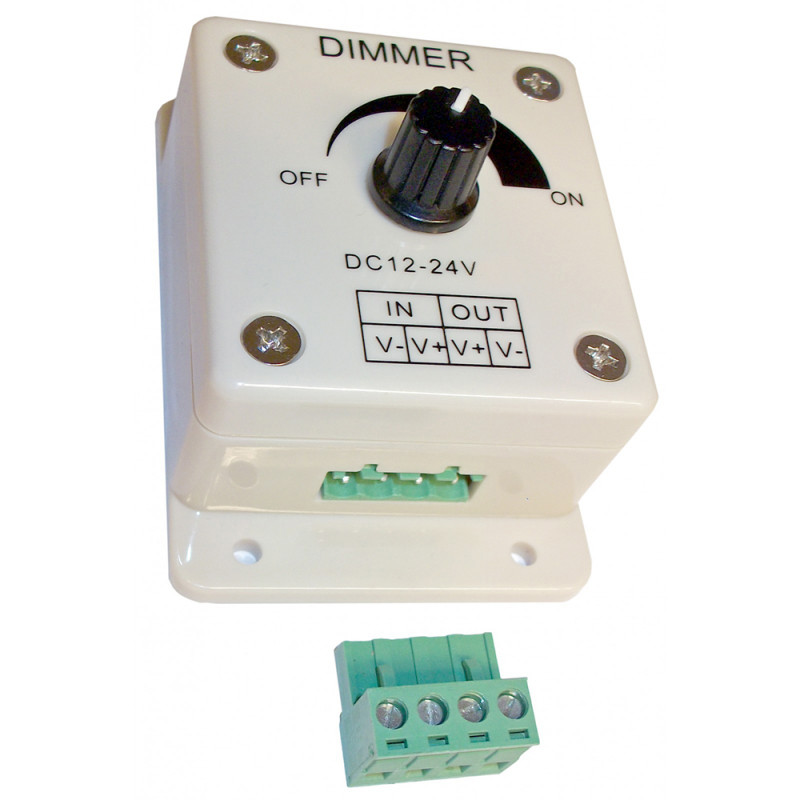

Regolatore manuale di strisce LED 160W/24 V (1 colore).
- User-friendly 1channel dimmer for all kinds of 12 VDC / 24 VDC LED-projectors like LED strips.
- PWM technology for smooth and flicker-free dimming from 0% to 100%

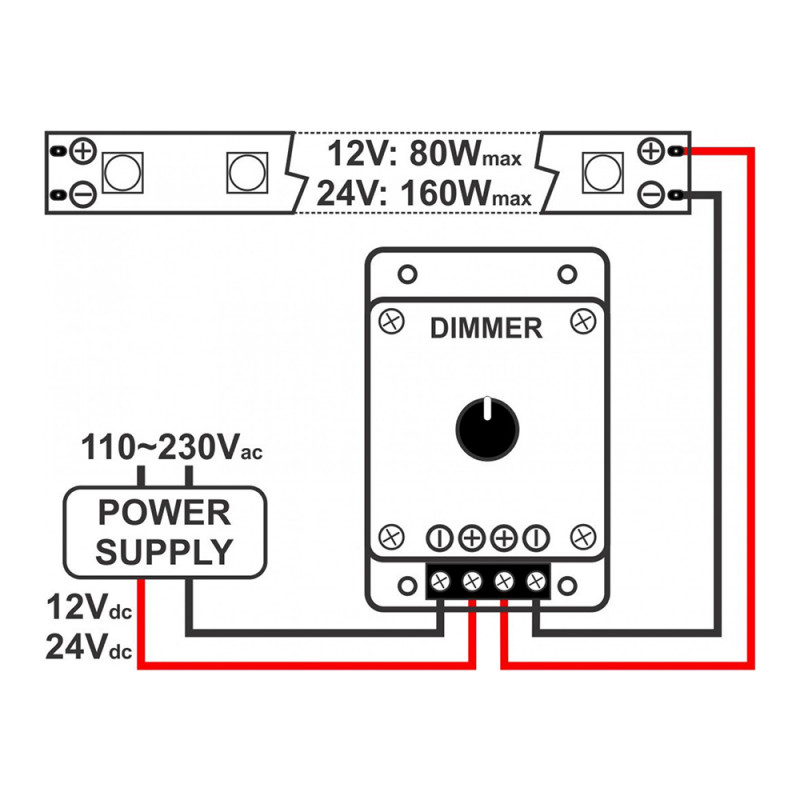

- Connects directly to 1color flexible LED-strips and other constant voltage LED-lights.
- Max. output power: 80 W @ 12 V * 160 W @ 24 V
- Extremely easy to install: only 4wires to connect!
- Standard 4pole Euro Block 5.08 mm connector included
- Can be mounted on any surface using 4 small screws.
- Perfect for use in LED installations for homes, shops, …
- Variateur 1 canal pratique pour toutes sortes de projecteurs LED 12 V/24 V comme des bandes LED.
- Technologie PWM pour une variation d'intensité uniforme et sans papillotement de 0 à 100 %.
- Branchez directement des bandes LED souples monocouleur et d'autres luminaires LED à tension constante.
- Puissance de sortie max. : 80 W sous 12 V * 160 W sous 24 V
- Installation très simple : seuls 4 fils à brancher !
- Connecteur standard Euroblock 4 pôles 5,08 mm inclus
- Montage en surface possible à l'aide de 4 petites vis.
- Convient parfaitement aux installations LED domestiques, aux magasins, …
General: Application | Architectural, Commercial |
---|---|
General: Dimensions (cm) | 8,9 x 5,9 x 5 cm |
General: Weight ( kg) | 0.06 |
General: Power input | 24 VDC, 12 VDC |
General: Energy Label | N/A |
General: Color | white |
General: Display | none |
General: IP rating | indoor |
