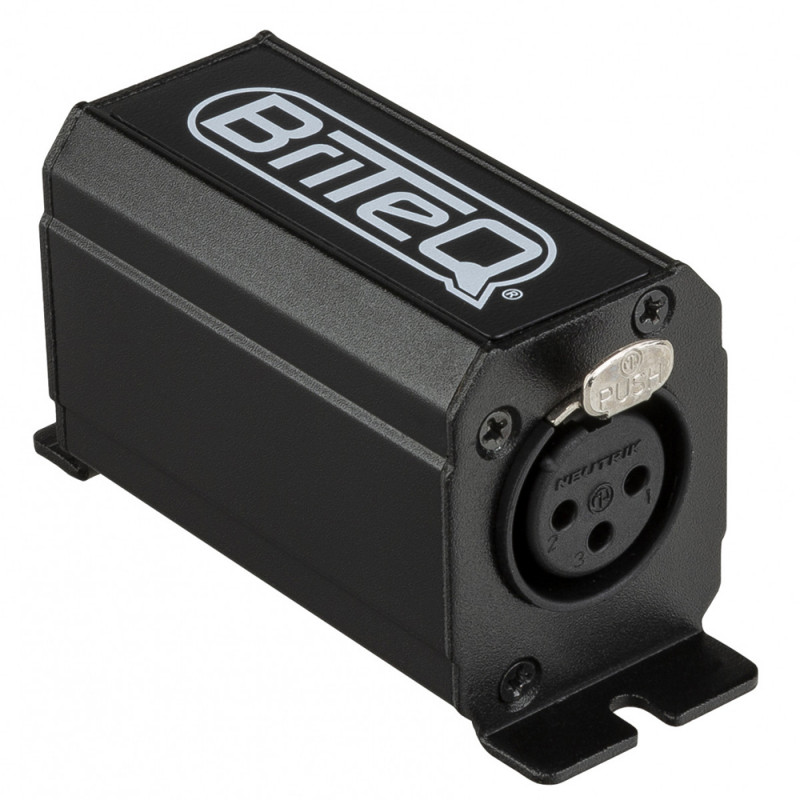

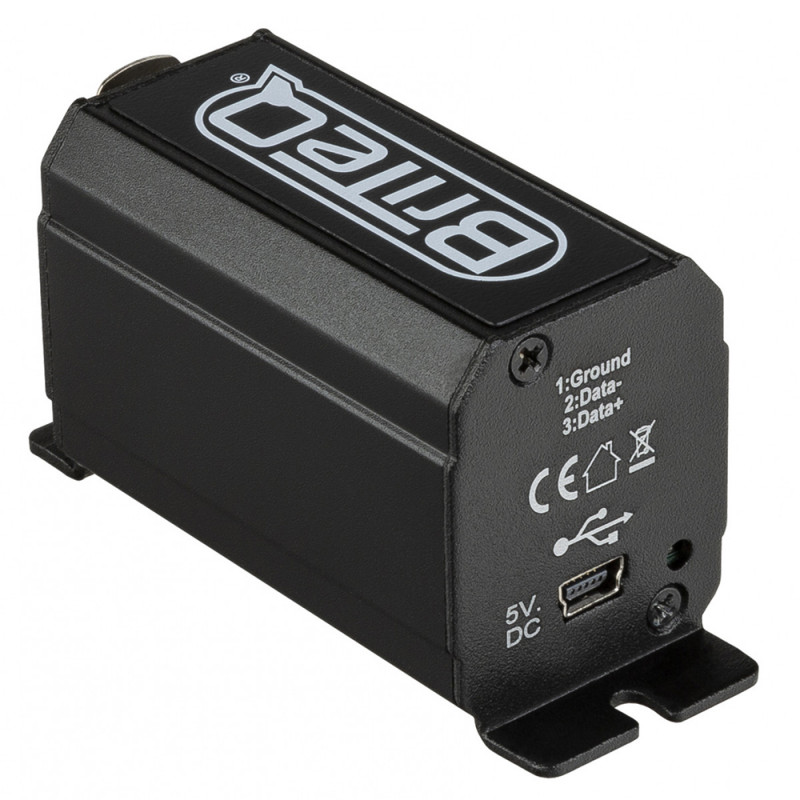

B05029 - LD-512ECO

DMX Interface 512 ch, Chromateq software
NON DISP.

180.30€ Prezzo di listino (IVA esclusa)

Descrizione

Interfaccia DMX entry-level a 512 canali (se collegata al PC).

Caratteristiche principali:

  • 512 canali in stand-alone (40 KB  memoria interna = da 10 a 300 passi DMX)
  • In modalità autonoma stand-alone, il programma interno inizierà a funzionare non appena l'unità viene accesa
  • Funziona con Chromateq Led Player (512 canali) e Pro DMX (256 canali) (incluso)
  • Connettori XLR a 3-pin
  • Alimentazione per l'utilizzo in modalità stand-alone: 5 VDC
Entry-Level DMX interface 512 channels (when connected to PC).

Main features:

  • 512 Channels in Stand Alone (40 KB  internal memory = 10 to 300 DMX steps)
  • In stand-alone mode, the internal program will start running as soon as the power of the unit is switched on.
  • Works with the Chromateq Led Player (512ch) and Pro DMX (256ch) (included).
  • 3-pin XLR connectors

  • Power supply for the use in stand-alone mode: 5VDC.

Interface DMX 512 canaux lorsqu'elle est connectée à un PC.
512 canaux en mode autonome (40 KB de mémoire interne = 10 à 300 pas DMX).
En mode autonome, le programme interne commence à fonctionner dès la mise sous tension de l'appareil.
Fonctionne avec le Chromateq Led Player (512 canaux) et le Pro DMX (256 canaux) (inclus).
Connecteurs XLR à 3 broches.
Alimentation pour l'utilisation en mode autonome : 5VDC.
Pour plus d'informations sur le logiciel : www.chromateq.com.

Dati tecnici

General: Dimensions (cm) 8 x 3 x 4
General: Weight ( kg) 0.5
General: Power input USB 5VDC
General: Energy Label No
General: Color black
General: Display none
General: IP rating indoor
Control: Protocol DMX
Control: programmable Yes
Control: upgradable software Yes
Control: maximum DMX channels 512
Connections: input 3-pin XLR, usb
Connections: output 3-pin XLR
