Interfaccia DMX a 1024 canali per spettacoli dal vivo e automazione luci. Può essere collegata al computer tramite USB (cavo incluso) o tramite Ethernet (LAN/WLAN). Funziona con Chromateq Led Player, Pro DMX e il software Pixxem (incluso).
Caratteristiche principali:
- 1024 canali in stand-alone (300 KB memoria interna = da 100 a 1024 passi DMX)
- Fino a 2 universi Art-Net per box connesso al PC quando si utilizza il software LED PLAYER o PRO DMX. Art-Net verrà inviato tramite il connettore di rete RJ45 del tuo PC
- Fino a 8 universi Art-Net per box connesso al PC quando si utilizza il software Pixxem!
- Ricevitore a infrarossi (con telecomando IR opzionale)
- 1 pulsante NEXTI per la selezione della scena
- Timeline di 30 min. per luci sincronizzate, loop audio e video (software Pro DMX)
- Connettori XLR a 3-pin
- Alimentazione per l'utilizzo in modalità autonoma: 5 VDC, 0,2 A (adattatore non incluso)
- Può essere collegato all'unità un ricevitore a infrarossi esterno opzionale (LD-512Kit-IR = ricevitore IR + 2 telecomandi)

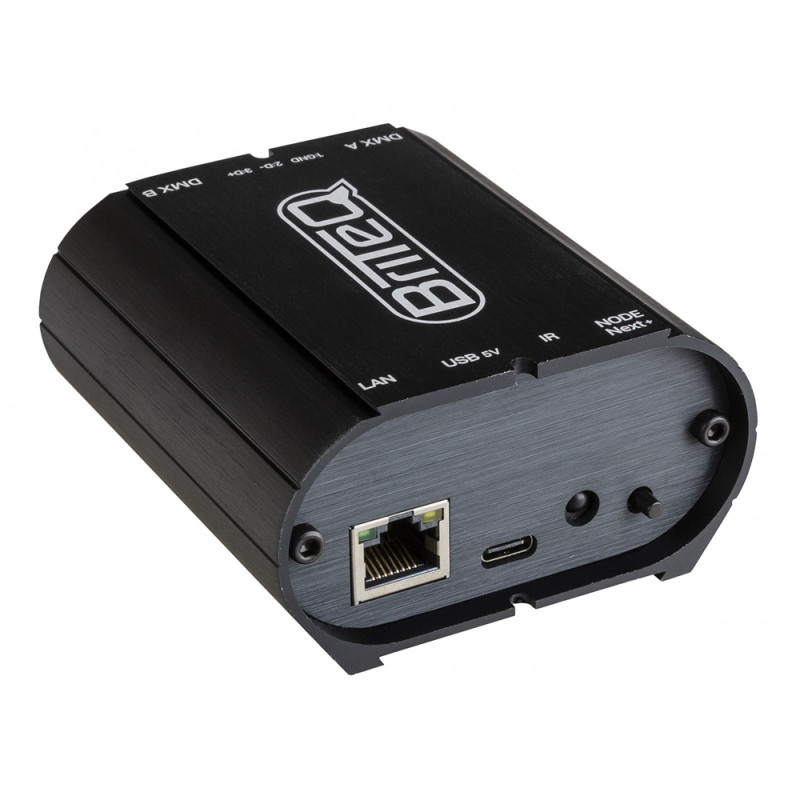

1024 channel DMX interface for live-shows and light automation. Can be connected to your computer via USB (cable included) or via Ethernet (LAN/WLAN). It works with the Chromateq Led Player, Pro DMX and the Pixxem software (included).
Main features:
- 1024 CHannels in Stand Alone (300 KB internal memory = 100 to 1024 DMX steps)
- Up to 2 Art-Net universes per connected box to the PC when using the LED PLAYER or PRO DMX software. The Art-Net will be sent over the RJ45 network connector of your PC
- Up to 8 Art-Net universes per connected box to the PC when using the Pixxem software!
- Infrared receiver (with optional IR remote)
- 1 NEXT button for scene selection

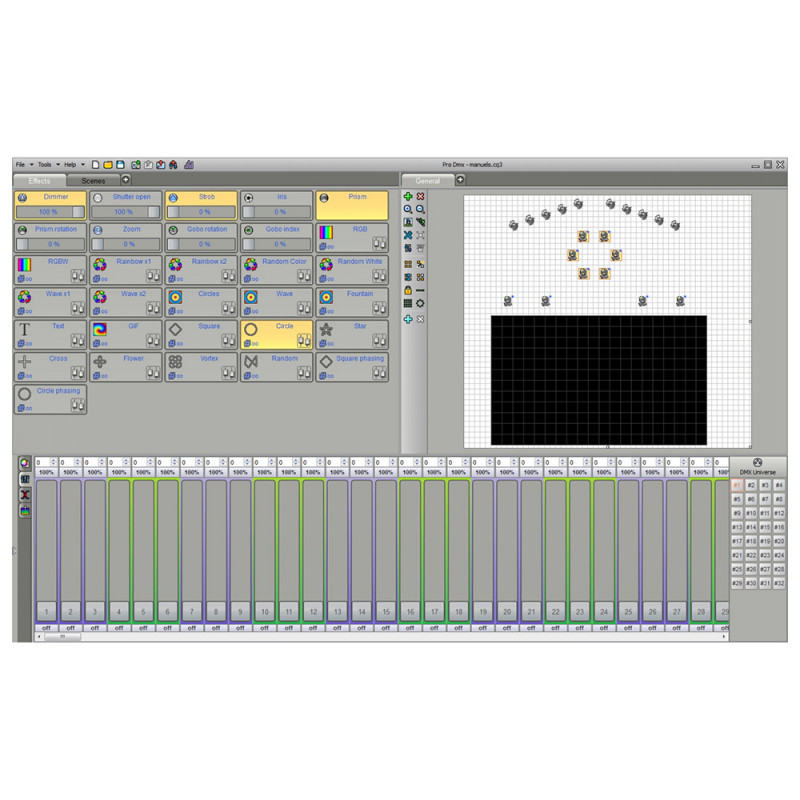

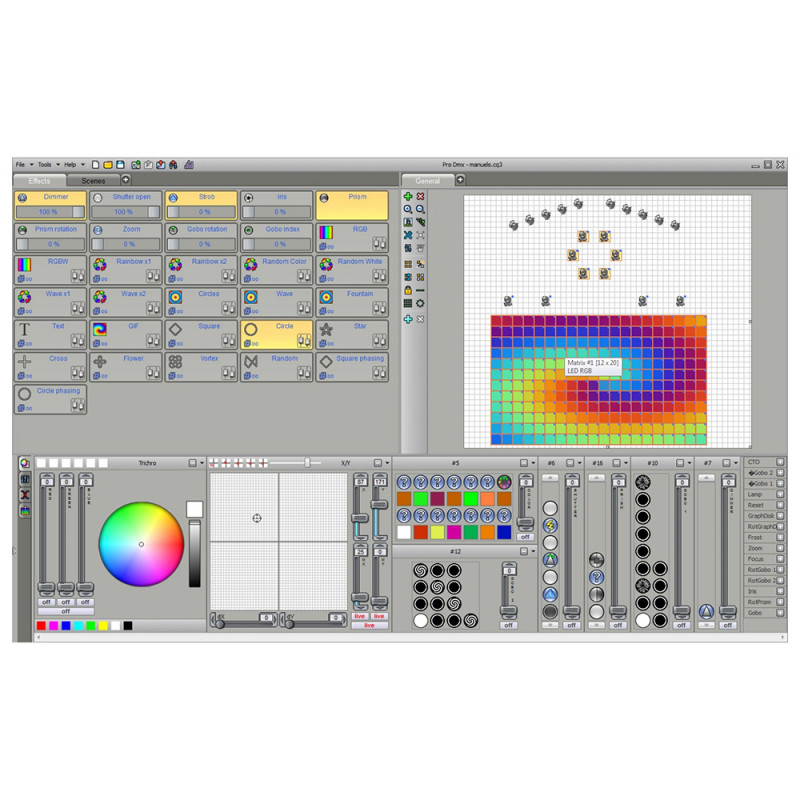

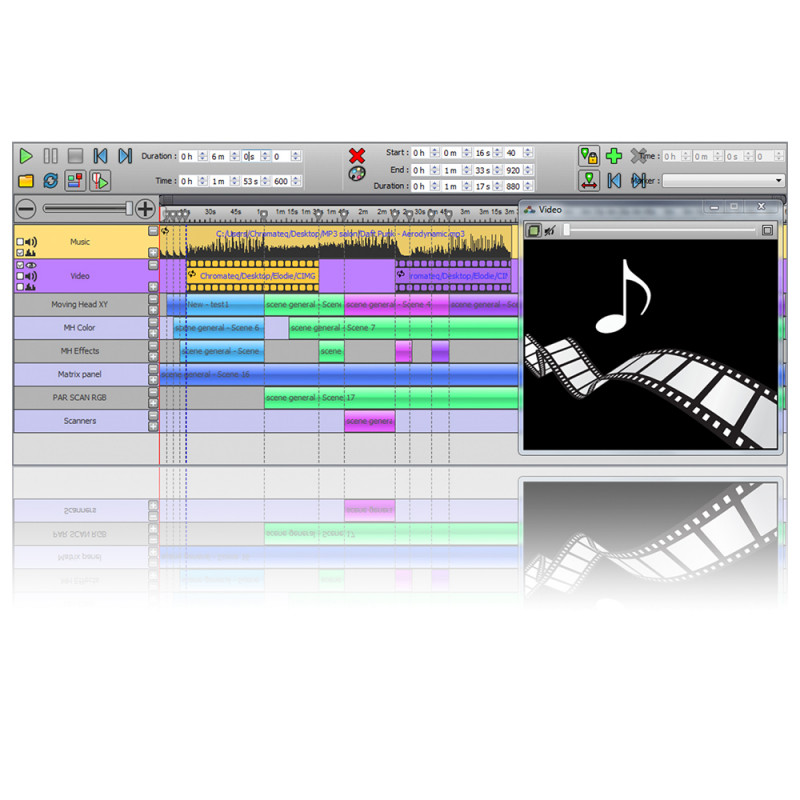

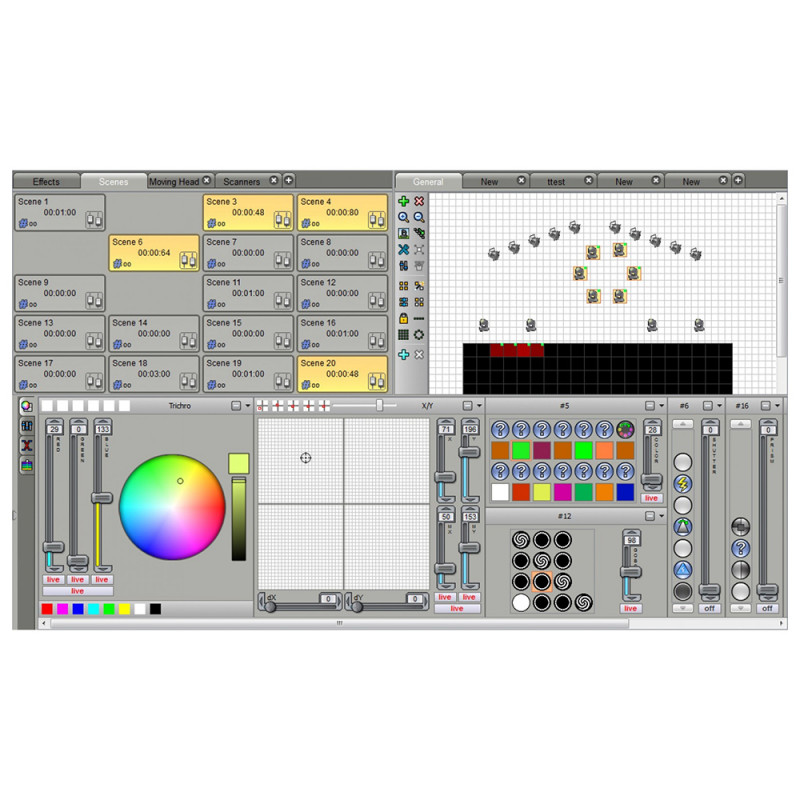

- 30 min. timeline for synchronized lighting, audio and video loops (Pro DMX software)

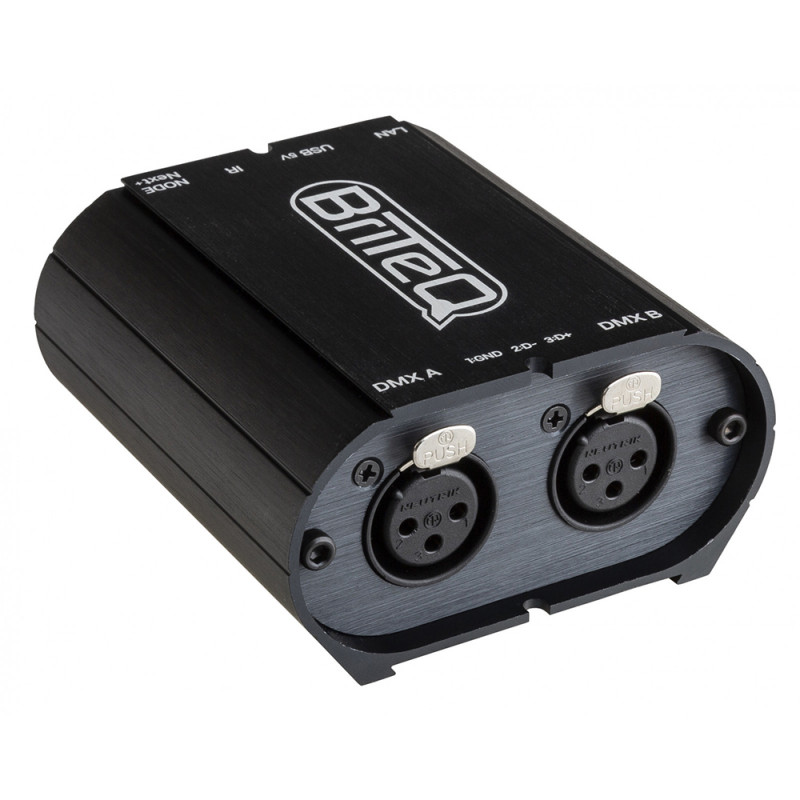

- 3-pin XLR connectors
- Power supply for use in stand-alone mode: 5 VDC, 0.2 A (adapter not included)
- An optional external infrared receiver can be connected to the unit (LD-512Kit-IR = IR receiver + 2 remote controllers)
Interface DMX 1024 canaux pour les spectacles live et l'automatisation des lumières.
Peut être connecté à votre ordinateur via USB (câble inclus) ou via Ethernet (LAN / WLAN).
1024 canaux en mode autonome (300 KB de mémoire interne = 100 à 1024 pas DMX).
Jusqu'à 2 univers Artnet par boîtier connecté au PC lors de l'utilisation du logiciel LED PLAYER ou PRO DMX. L'Artnet sera envoyé sur le connecteur réseau RJ45 de votre PC.
Jusqu'à 8 univers Artnet par boîtier connecté au PC lors de l'utilisation du logiciel PIXXEM !
Récepteur infrarouge (télécommande IR en option).
1 Bouton NEXT pour la sélection des scènes.
Timeline de 30 minutes pour la synchronisation de l'éclairage, des boucles audio et vidéo ! (logiciel Pro DMX).
Fonctionne avec les logiciels Chromateq Led Player, Pro DMX Pixxem (inclus).
Connecteurs XLR à 3 broches.
Alimentation pour l'utilisation en mode autonome : 5VDC, 0,2 A (adaptateur non inclus).
Un récepteur infrarouge externe optionnel peut être connecté à l'unité (LD-512Kit-IR = récepteur IR + 2 télécommandes).
Pour plus d'informations sur le logiciel : chromateq.com
Dati tecnici
General: Dimensions (cm) |
7 x 9 x 5 |
General: Weight ( kg) |
0.23 |
General: Power input |
USB 5VDC |
General: Energy Label |
No |
General: Color |
No |
General: Display |
No |
General: IP rating |
indoor |
Control: Protocol |
Art-Net, sACN, DMX |
Control: programmable |
Yes |
Control: upgradable software |
Yes |
Control: maximum DMX channels |
1024 |
Connections: input |
usb, RJ45 |
Connections: output |
3-pin XLR |
