H10492 - CEIL3TC-MKII

3 x 3 W tricolor LEDs waterproof projector
NON DISP.

28.58€ Prezzo di listino (IVA esclusa)

Descrizione

Proiettore LED da 3 x 3 W tricolore impermeabile, dotato di con una staffa di sostegno compatibile con raccordi MR16.

Può essere collegato tramite RJ45 a qualsiasi unità di alimentazione PILOT.

3 x 3 W tricolor LEDs waterproof projector supplied with a holding bracket compatible with MR16 fittings.

It can be connected to any supply unit of the PILOT series via IN/OUT RJ45 plugs.

Projecteur LED 3 x 3 W tricolore étanche, équipé d’un support compatible avec les raccords MR16.

Peut être connecté via RJ45 à n’importe quel bloc d’alimentation PILOT.

Dati tecnici

Technical characteristics

Optical

  • 3 x 3 W trichromic LEDs
  • Light output: 210 Lux at 3 m with white
  • Beamwidth: 40°

Material

  • Extruded aluminium housing
  • Compatible with MR16 fittings

Technical specifications

  • Power supply: 48 VDC 350 mA (max) 15 W
  • Tightness: IP65 (fully protected against dust and water splashing)
  • Compatible power supply and command units: PILOT60 / 120 / 140
  • Cable: CAT 5, 0.1 m cable with 8-pin RJ45 connector

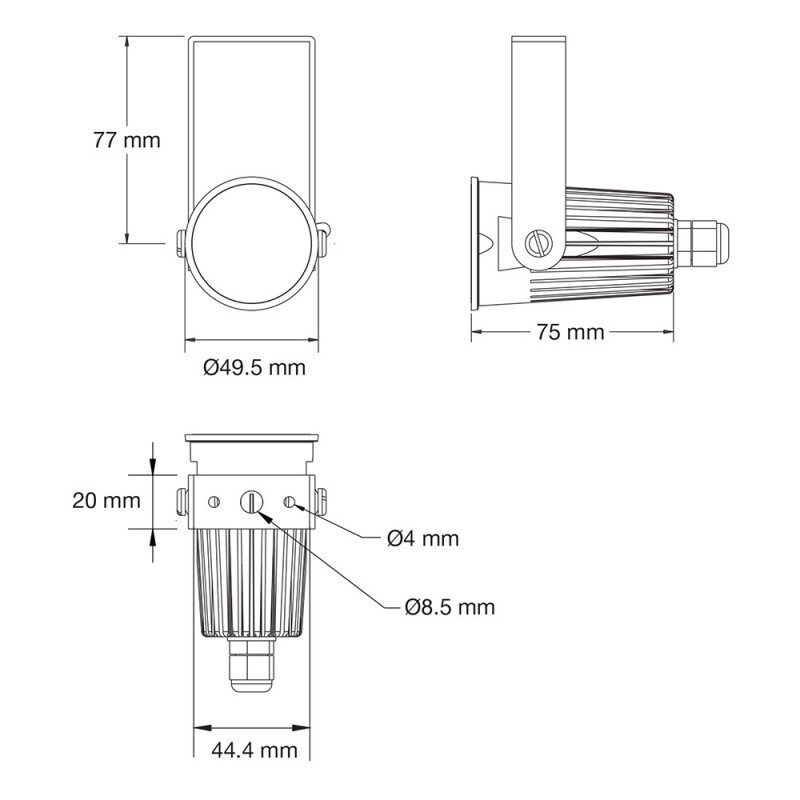

  • Dimensions: Diameter 4.95 cm (MR16 compatible) x length 7.5 cm
  • Weight : 0.245 kg
