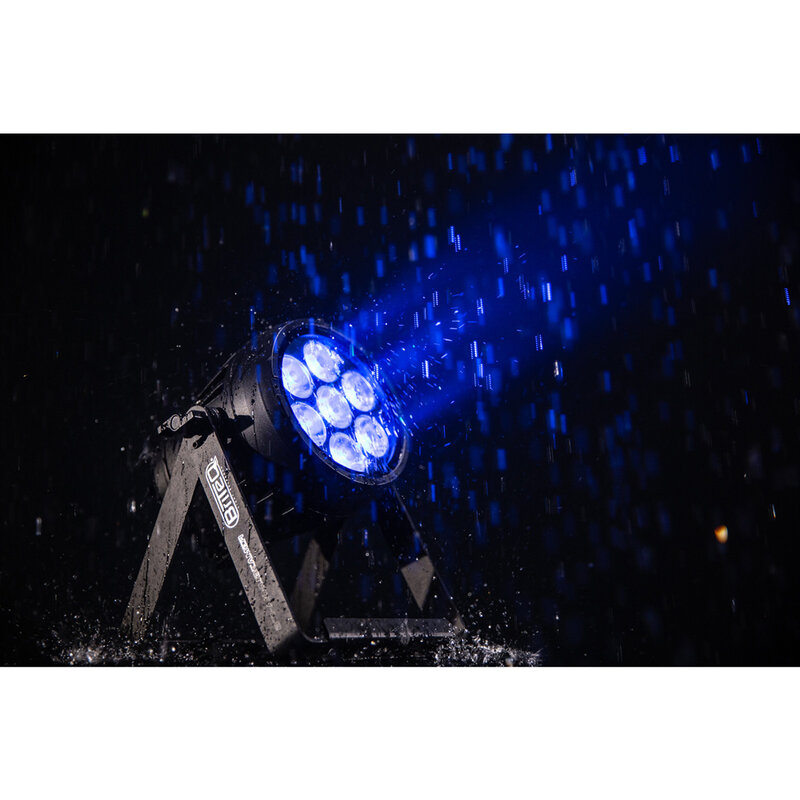

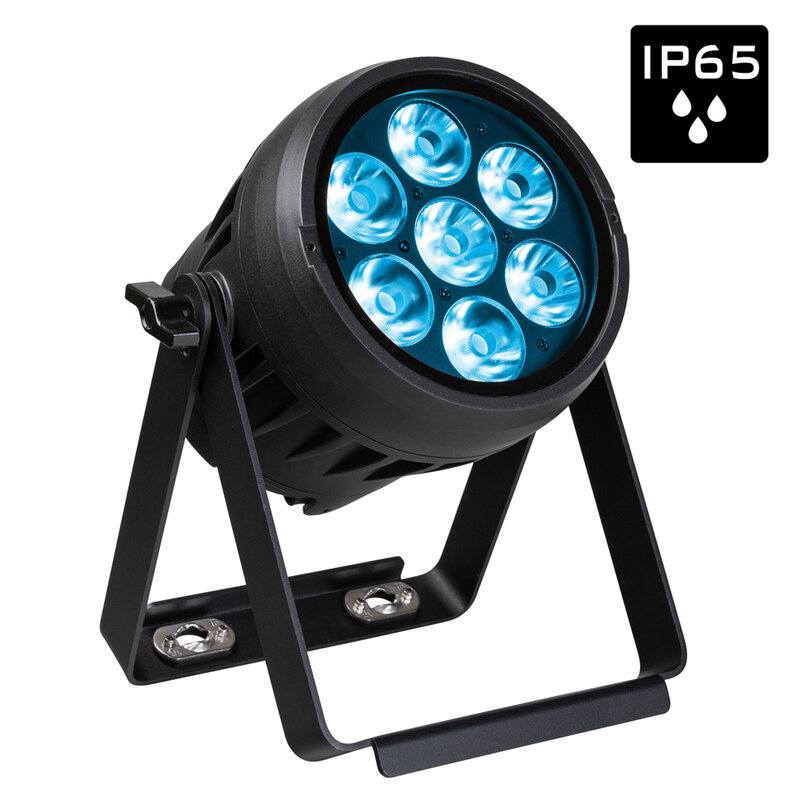

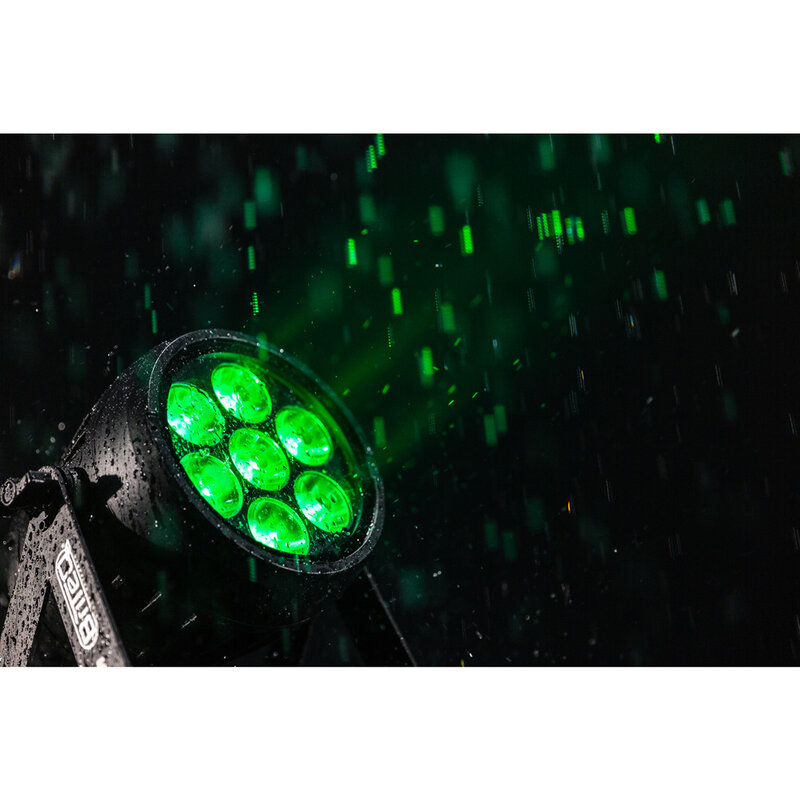

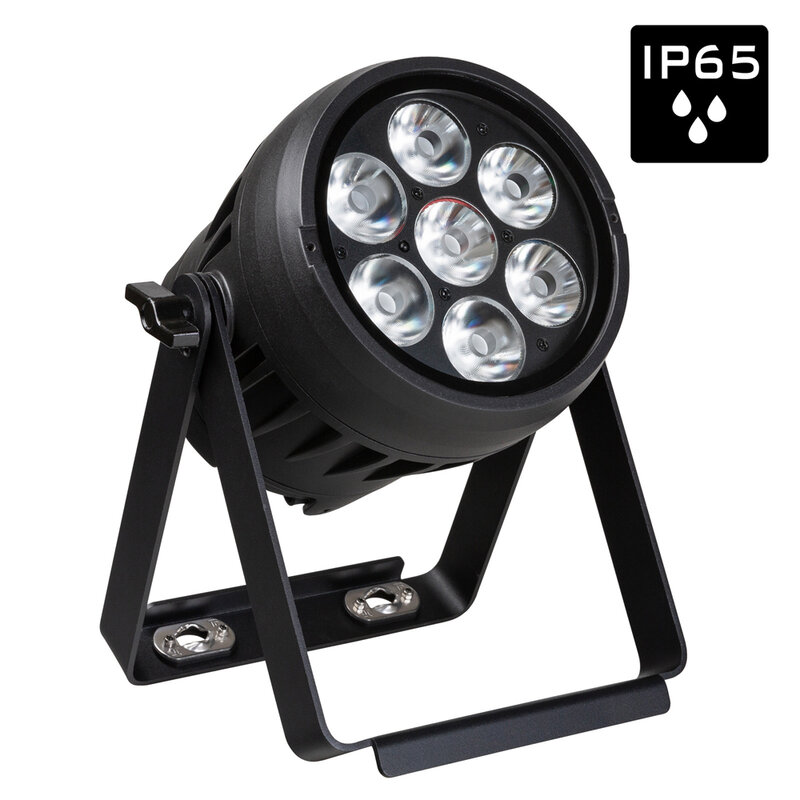

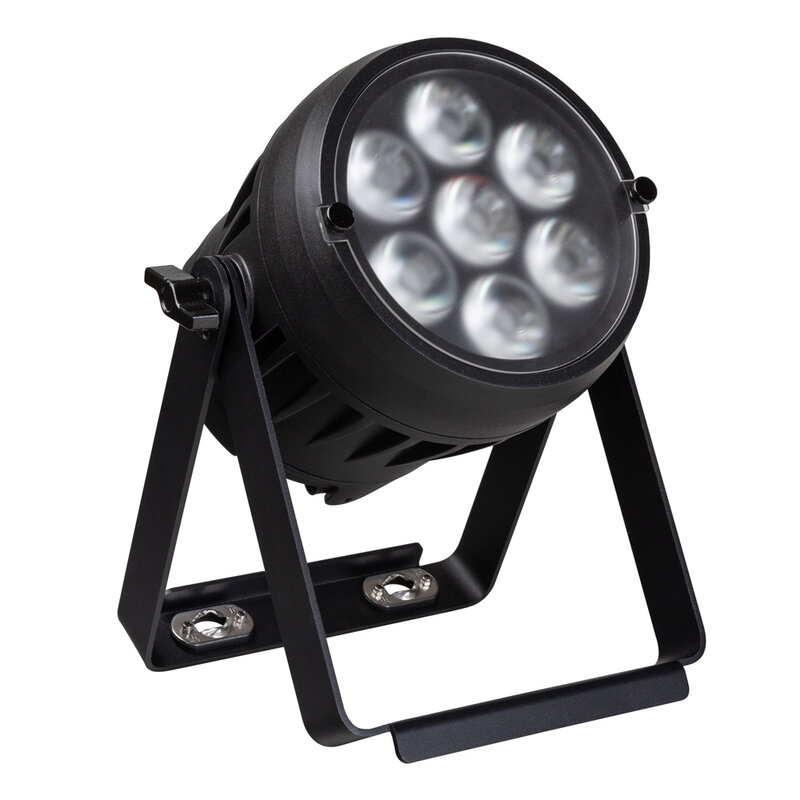

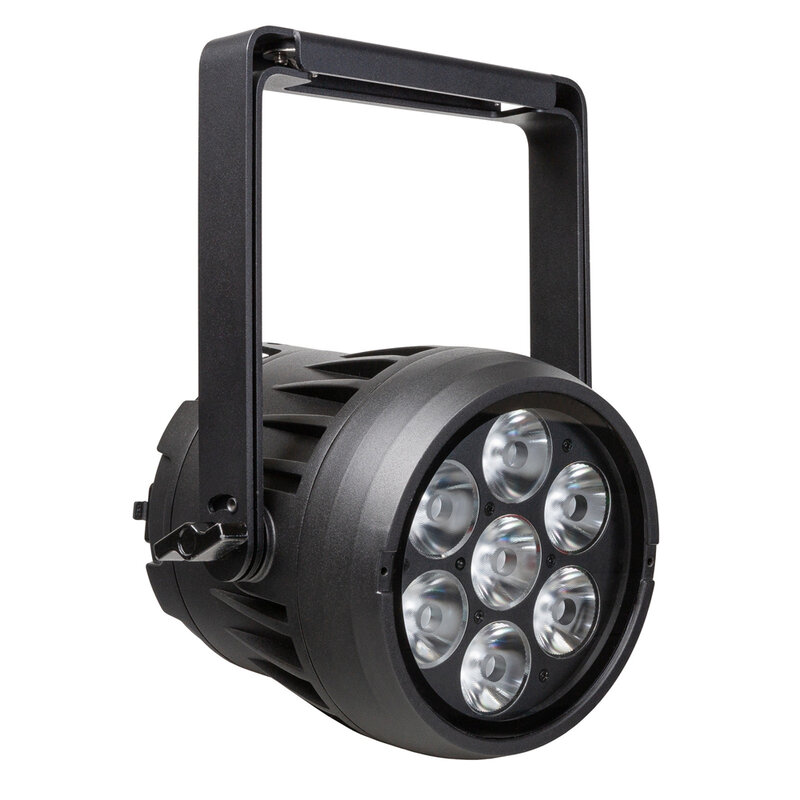

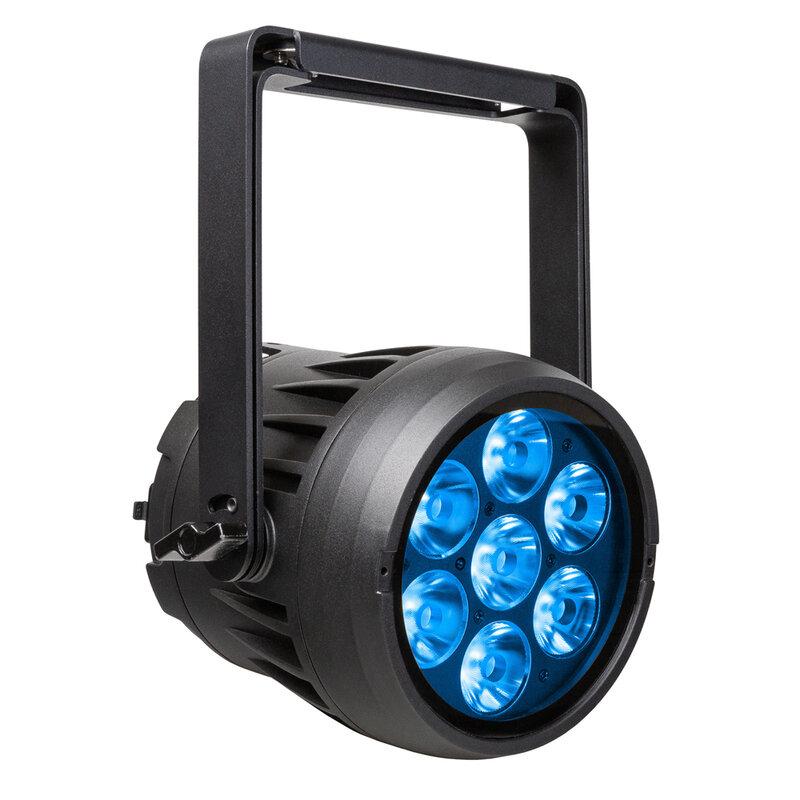

BTI-AKKUBEAMER è un proiettore LED compatto e potente, progettato per l’uso esterno grazie alla classificazione IP65.
Funziona a batteria, rendendolo ideale per installazioni temporanee e flessibili. Offre una resa luminosa intensa con colori vividi grazie ai 7 LED RGBL da 10 W integrati. Facile da controllare, supporta DMX cablato e wireless, oltre a modalità autonome.
Caratteristiche principali
- Idoneo per diverse applicazioni:

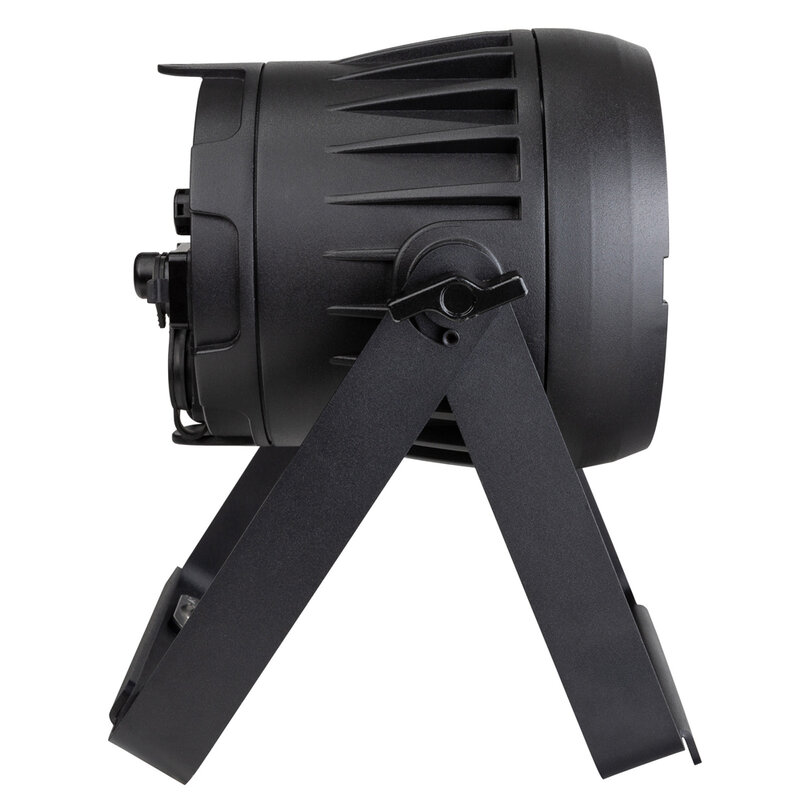

- Proiettore a batteria: grazie alle doppie staffe, alle batterie e al DMX wireless integrato
- PAR LED compatto: la staffa può essere dotata di morsetti per traliccio e/o staffe omega opzionali

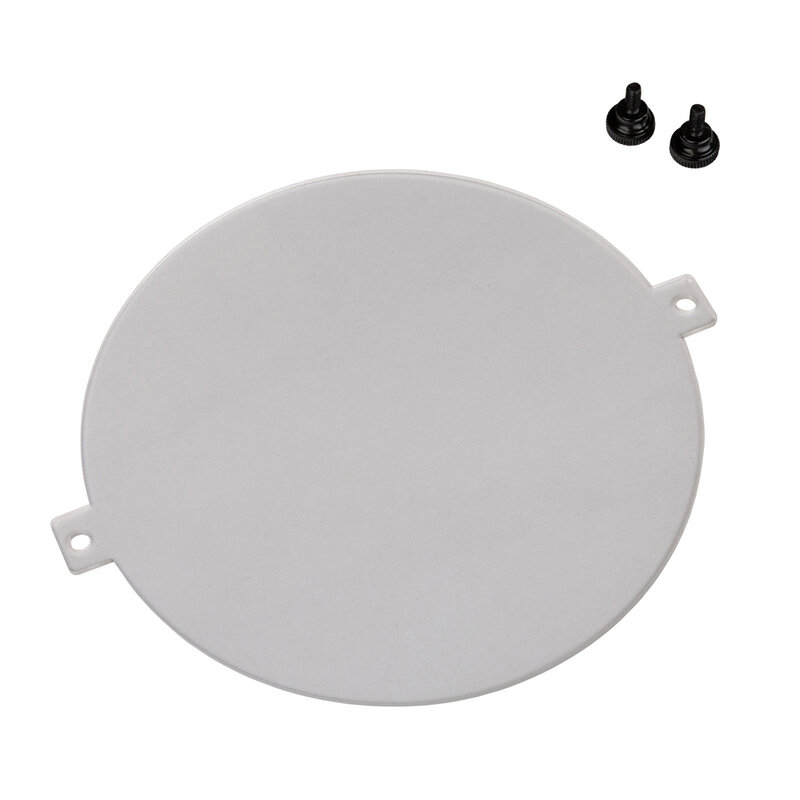

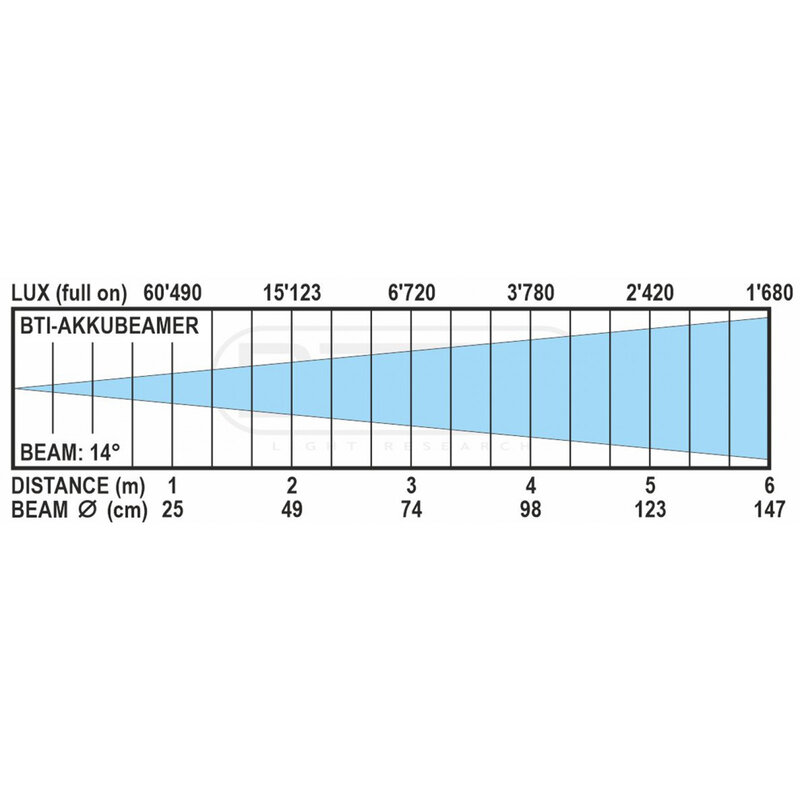

- L'angolo di proiezione standard di 14° (2420 lux a 5 m) può essere regolato utilizzando il filtro frost incluso
- Il trasmettitore wireless è compatibile al 100% con il protocollo W-DMX G4S
- Il caricabatterie interno ricarica la batteria mentre il proiettore è alimentato a rete
- Diverse modalità di funzionamento per la massima flessibilità:
- Stand-alone: colori personalizzati, preset colore + CCT o cambi colore automatici
- Modalità Master/Slave: il Master controlla gli Slave in modalità wireless o tramite cavo XLR, creando fantastici spettacoli di luce
- Controllo DMX: cablato e wireless (4 modalità: HSV a 3 canali, RGBL a 4 canali, LEDCON02 a 4 canali e STAGE a 8 canali per un controllo esteso)

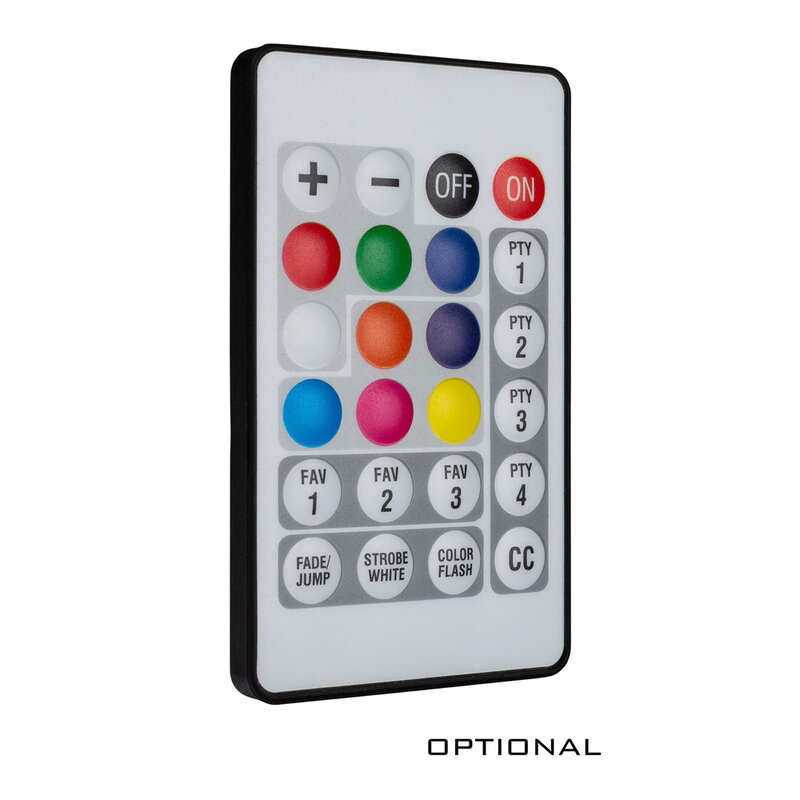

- Telecomando IR: controllo semplice tramite un telecomando (opzionale), anche in modalità Master/Slave
- Il display grafico OLED mostra numerose informazioni importanti, come la durata residua della batteria. In combinazione con i tasti touch, garantisce inoltre un funzionamento fluido del menu di configurazione
- Ingresso e uscita di rete compatibili con Seetronic PowerCON TRUE1 per un facile collegamento a cascata
- I connettori di ingresso e uscita XLR a 5 pin standard, resistenti alle intemperie, possono essere facilmente convertiti in XLR a 3 pin con il kit di conversione opzionale "BT-XLR5TO3 KIT"
- Può essere fissato con un lucchetto antifurto standard per laptop (disponibile da diverse marche)
- È disponibile un flight case opzionale da 120 x 60 cm, in cui è possibile ricaricare fino a 8 proiettori
Vantaggi per gli utenti
- Cambio di colore RGBL estremamente fluido
- Circa 10 ore di autonomia grazie alle batterie al litio da 7800 mAh
- Raffreddamento "passivo" completamente silenzioso (senza ventole di raffreddamento!)
- Compatibilità W-DMX G4S
- Installazione flessibile
Ambiti di utilizzo
- Eventi
- Illuminazione architetturale
- Spettacoli
BTI-AKKUBEAMER is a compact and powerful LED projector, designed for outdoor use thanks to its IP65 rating.
It is battery operated, making it ideal for temporary and flexible installations. It offers an intense light output with vivid colors thanks to the 7 integrated 10 W RGBL LEDs. Easy to control, it supports wired and wireless DMX, as well as autonomous modes.
Main features
- Suitable for different applications:
- Battery-powered projector: thanks to the double brackets, batteries and integrated wireless DMX
- Compact LED PAR: the bracket can be equipped with optional truss clamps and/or omega brackets
- The standard 14° beam angle (2420 lux at 5 m) can be adjusted using the included frost filter
- The wireless transmitter is 100% compatible with the W-DMX G4S protocol
- The internal battery charger recharges the battery while the projector is powered by the mains
- Different operating modes for maximum flexibility:
- Stand-alone: custom colors, color presets + CCT or automatic color changes
- Master/Slave mode: the Master controls the Slaves wirelessly or via XLR cable, creating fantastic light shows
- DMX control: wired and wireless (4 modes: 3-channel HSV, 4-channel RGBL, 4-channel LEDCON02 and 8-channel STAGE for precise control extended)
- IR remote control: easy control via a remote control (optional), even in Master/Slave mode

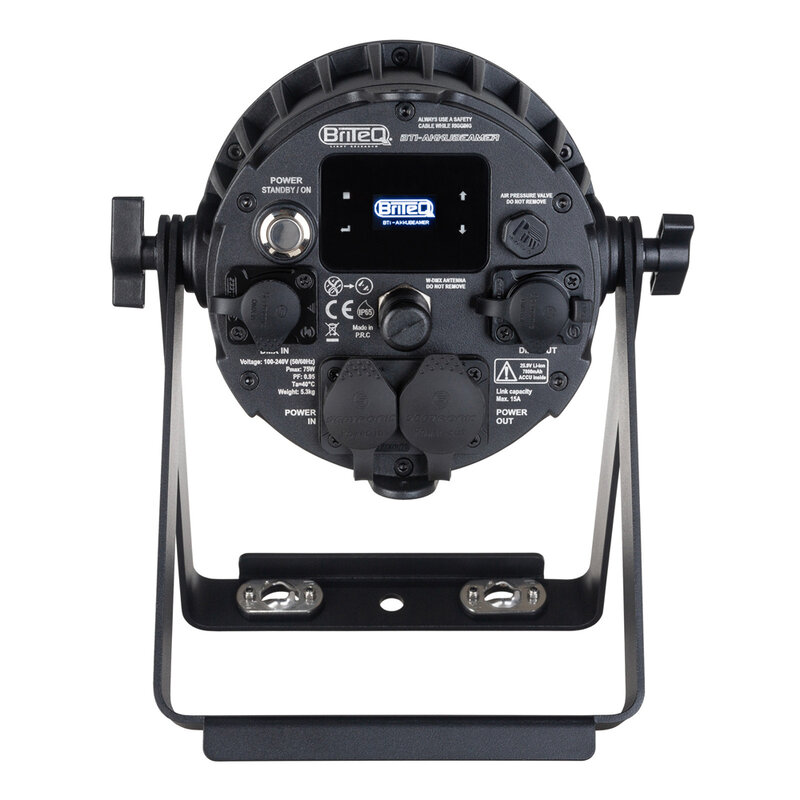

- The graphic OLED display shows a variety of important information, such as the remaining battery life. In combination with the touch keys, it also ensures smooth operation of the setup menu
- Seetronic PowerCON TRUE1 compatible network input and output for easy daisy-chaining
- The standard, weatherproof 5-pin XLR input and output connectors can be easily converted to 3-pin XLR with the optional "BT-XLR5TO3 KIT" conversion kit
- Can be secured with a standard laptop anti-theft lock (available from various brands)
- An optional 120 x 60 cm flight case is available, in which up to 8 projectors can be charged
User benefits
- Extremely smooth RGBL color change
- Approximately 10 hours of battery life thanks to 7800 mAh lithium batteries
- Completely silent "passive" cooling (no cooling fans!)
- W-DMX G4S compatibility
- Flexible installation
Areas of use
- Events
- Architectural lighting
- Shows
Le BTI-AKKUBEAMER est un projecteur LED compact et puissant conçu pour une utilisation en extérieur grâce à son indice de protection IP65.
Il fonctionne sur batterie, ce qui le rend idéal pour les installations temporaires et flexibles. Il offre une lumière intense et des couleurs vives grâce à ses 7 LED RGBL de 10 W intégrées. Facile à contrôler, il prend en charge le DMX avec ou sans fil, ainsi que le mode autonome.
Caractéristiques principales
- Convient à diverses applications :
- Projecteur alimenté par batterie : grâce aux supports doubles, aux batteries et au DMX sans fil intégré
- PAR LED compact : le support peut être équipé de pinces de structure et/ou de supports oméga en option
- L'angle de projection standard de 14° (2420 lux à 5 m) peut être ajusté à l'aide du filtre frost inclus
- L'émetteur sans fil est 100 % compatible avec le protocole W-DMX G4S
- Le chargeur interne permet de recharger la batterie pendant que le projecteur est alimenté par le secteur
- Plusieurs modes de fonctionnement pour une flexibilité maximale :
- Stand-alone : couleurs personnalisées, préréglages de couleurs + CCT ou changements de couleurs automatiques
- Mode Master/Slave : le Master contrôle les Slaves sans fil ou via un câble XLR, créant ainsi de fantastiques jeux de lumière
- Contrôle DMX : câblé et sans fil (4 modes : HSV à 3 canaux, RGBL à 4 canaux, LEDCON02 à 4 canaux et STAGE à 8 canaux pour un contrôle étendu)
- Télécommande IR : contrôle simple via une télécommande (en option), même en mode maître/esclave
- L'écran graphique OLED affiche de nombreuses informations importantes, telles que la durée de vie restante des piles.
- En combinaison avec les boutons tactiles, il assure également une utilisation fluide du menu de configuration
- Entrée et sortie réseau compatibles avec Seetronic PowerCON TRUE1 pour une mise en cascade facile
- Les connecteurs d'entrée et de sortie XLR standard à 5 broches, résistants aux intempéries, peuvent être facilement convertis en XLR à 3 broches à l'aide du kit de conversion « BT-XLR5TO3 KIT » en option.
- Peut être sécurisé avec un antivol standard pour ordinateur portable (disponible auprès de différentes marques)
- Un flight case de 120 x 60 cm est disponible en option, dans lequel il est possible de recharger jusqu'à 8 projecteurs.
Avantages pour les utilisateurs
- Changement de couleur RGBL extrêmement fluide
- Autonomie d'environ 10 heures grâce aux batteries au lithium de 7800 mAh
- Refroidissement « passif » totalement silencieux (pas de ventilateurs !)
- Compatibilité W-DMX G4S
- Installation flexible
Domaines d'utilisation
- Événements
- Éclairage architectural
- Spectacles
Dati tecnici
Technical characteristics
- Lux: 2420 @ 5 m (beam 14°)
- Lamp: LED
- Min. color temperature: 2500 K
- Max. color temperature: 6000 K
- Colors: RGBL
- Mix colors: yes

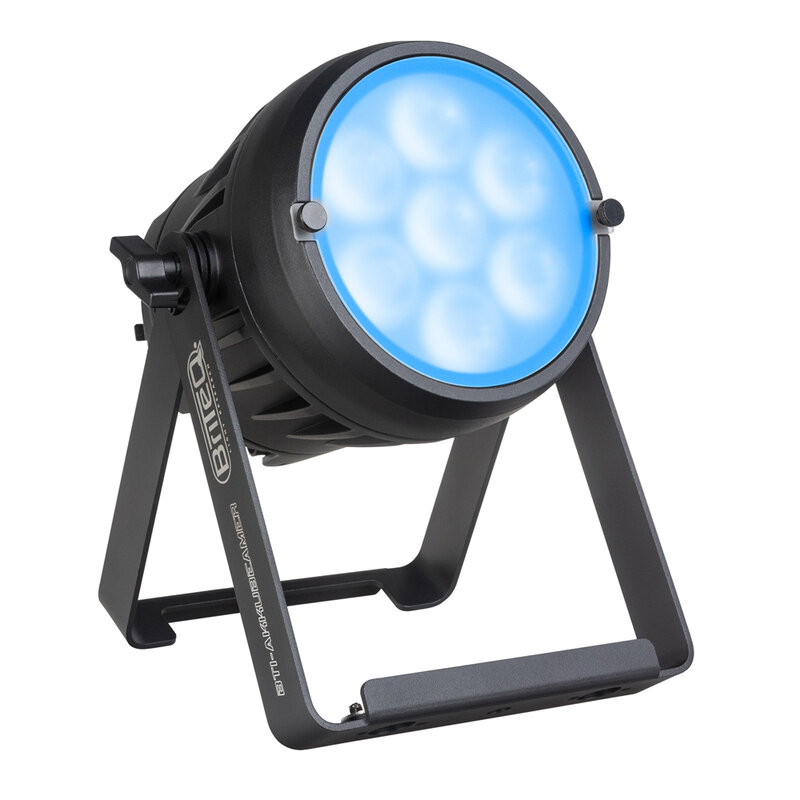

- Functions: 1 frost filter included
- Min. beam angle: 14°
- Max. refresh rate: 7 kHz
- Power input: 100 - 240 VAC 50/60 Hz
- Works on battery: yes
- Power consumption: 75 W
- Color: black
- Display: OLED
- Fixation: optional omega bracket
- IP rating: outdoor (IP65)
- Modes: stand-alone fixed, stand-alone automatic, remote, manual, DMX, Master/Slave
- Protocol: DMX, Wireless DMX, RDM
- Optional remote: IR-4
- Upgradable software: yes
- Min. DMX channels: 3
- Max. DMX channels: 8
- Input: 5-pin XLR, Wireless DMX, RDM, powerCON TRUE1 or compatible
- Output: 5-pin XLR, Wireless DMX, RDM, powerCON TRUE1 or compatible

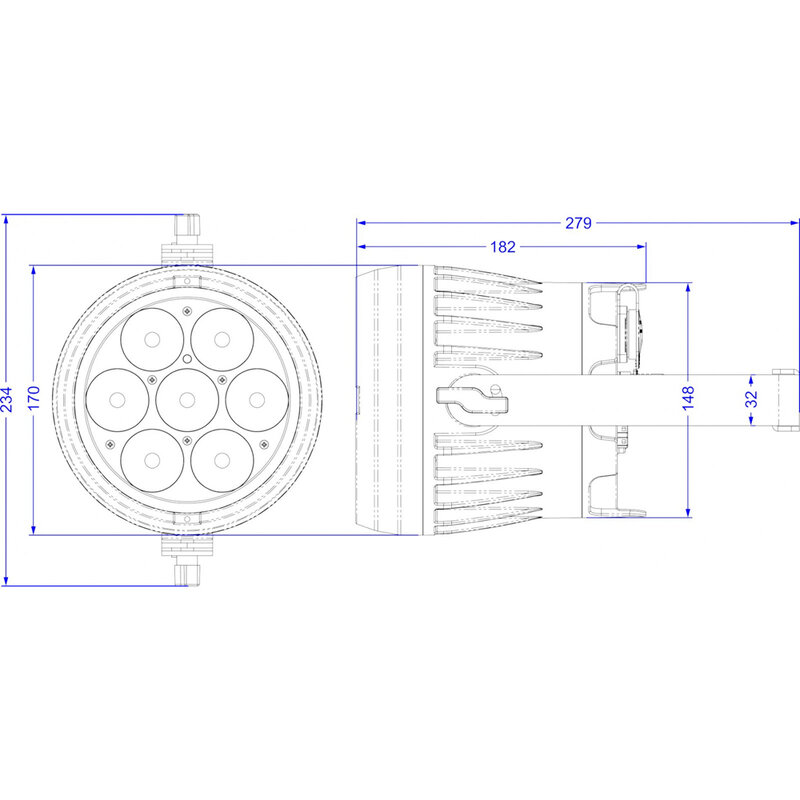

- Dimensions: 17 x 23.4 x 27.9 cm
- Weight: 5.3 kg
