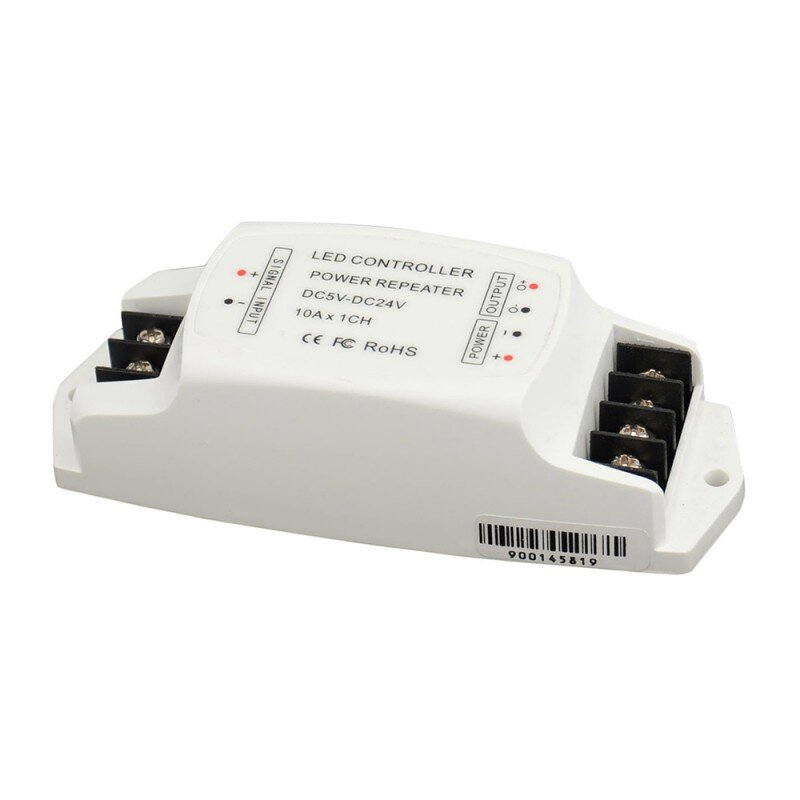

Amplificatore di segnale a 1 canale, 12 - 24 VDC, fino a 240 W, 10 A max. Installazione senza saldature.
Per nastri LED monocromatici.
Single-channel signal amplifier, 12 - 24 VDC, up to 240 W, 10 A max. Without soldering installation.
For monochrome LED strips.
Amplificateur de signal 1 canal, 12 - 24 VDC, jusqu’à 240 W, 10 A max. Installation sans soudure.
Pour les rubans LED monochromes.
Technical characteristics
| Input voltage | 12 - 24 VDC |
| Max. load current | 10 A / CH x 1 |
| Output signal | constant voltage PWM |
| Max. output power | 120 W (12 V), 240 W(24 V) |
| Dimensions | 125 x 45 x 36 mm |
| Weight | 100 g |
