B03481 - BT-TRUSS H-FRAME BLK 750X1000

Aluminium H-frame 750x1000

166.10€ Prezzo di listino (IVA esclusa)

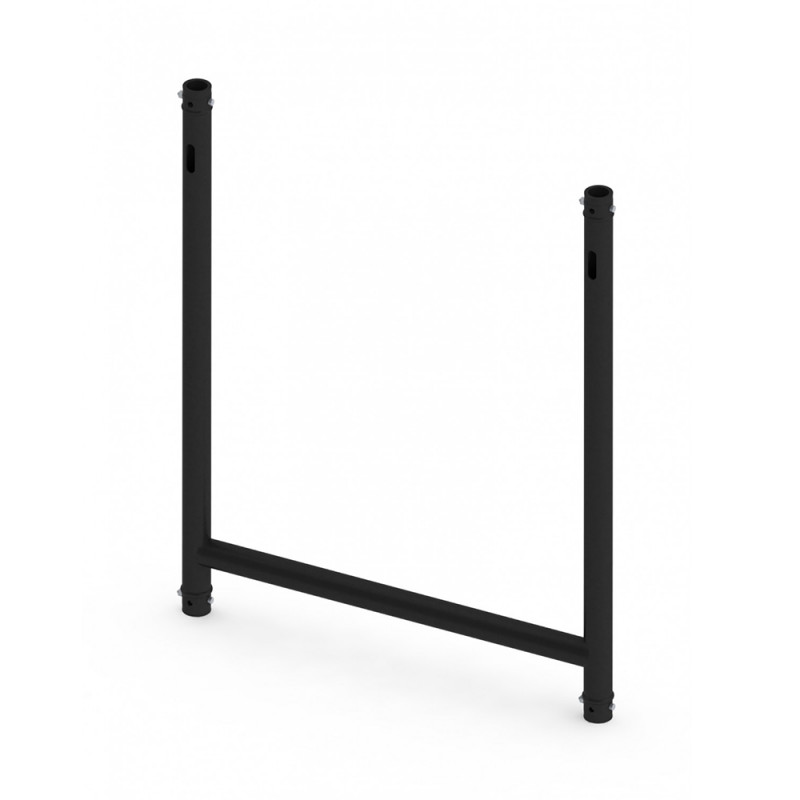

The aluminium 'H' Frame a perfect tool to fix all kinds of projectors and moving lights to truss, 750x1000mm

Le cadre en H en aluminium est l’outil idéal pour fixer toutes sortes de projecteurs et d’éclairages mobiles, 750x1000 mm.

Dati tecnici

  • Several frames can be linked together to create a ladder with multiple levels to install your fixtures.
  • Each H-frame has standard 48mm tube diameter and is fitted with four female conical connectors. (male couplers not included)
  • Powder painted satin black finish to reduce the visibility of the frame in your setup.
  • Slots to easily fix safety cables are provided.

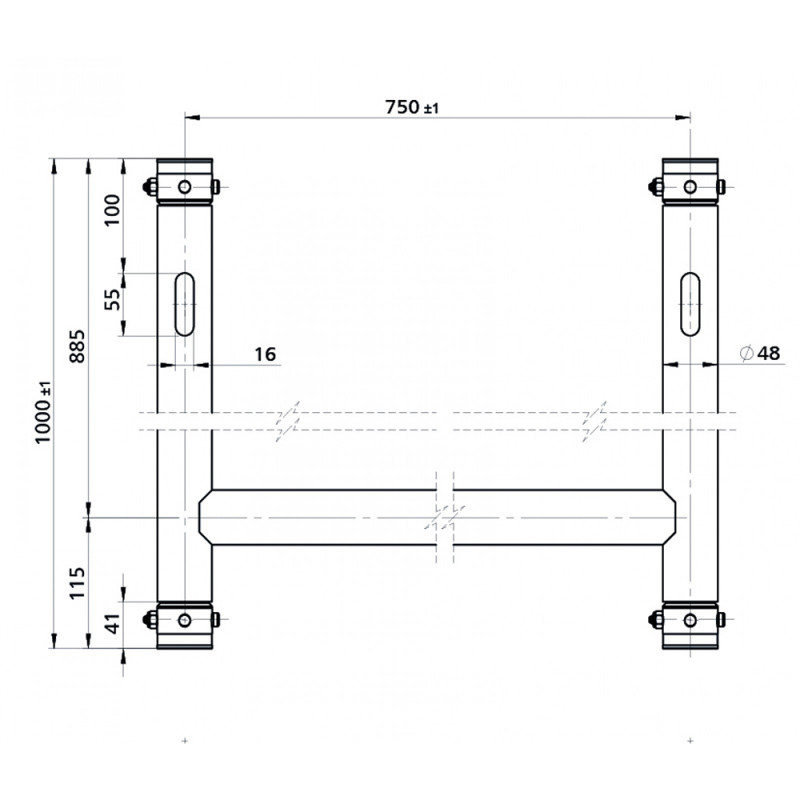

  • Dimensions: 750 x 1000 x 49mm
  • Weight: 3,45 kg
  • SWL: 200 kg
  • Also available with height = 41,5 cm
General : Application DJ & Club, Stage & Rental, Theatre
General : Dimensions (cm) 75 x 100 x 4.9 cm
General : Weight (kg) 3.45
General : Color black
Stand & Truss : tube Ø 50x2 mm
Stand & Truss : truss type tube
Stand & Truss : Compatible Prolyte
